3-06548 Couplamatic 3 Series Coupling - JIC 37° - Female Swivel - 3/8" Hose ID - 3/4-16 Thread Size

3-06548 by Couplamatic | 3 Series Coupling | 3/8" Hose ID x 3/4-16 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating | Pack of 20

Save $11.54 Save $11.54
$103.85
$103.85 - $103.85
$103.85
$92.31
$92.31 - $92.31
$92.31

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - JIC 37° - Female Swivel

Package Quantity: 20 EA

Specifications for Variant SKU: 3-06548 Couplamatic | 20 |
Series: 3 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: H7 Series  |   H7NC Series  |   H7TL Series  |   H7LNC Series  |   HS8 Series  |   HS8NC Series  |   R18 Series
Description:
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•

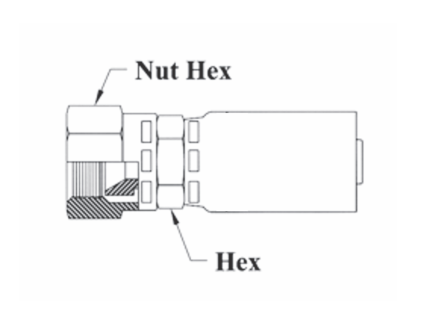

    Part Number Hose ID Thread Size Tube OD Hex Size Nut Hex Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-02544 1/8" 7/16-20 1/4" 1/2" 5/8" 302 FP010 10655-4-2 3903-02544
    3-03544 3/16" 7/16-20 1/4" 9/16" 5/8" 303 FP011 10655-4-3 3903-03544
    3-04544 1/4" 7/16-20 1/4" 5/8" 5/8" 304 FP012 10655-4-4 3903-04544
    3-04545 1/4" 1/2-20 5/16" 5/8" 3/4" 304 FP013 10655-5-4 3903-04545
    3-04546 1/4" 9/16-18 3/8" 5/8" 3/4" 304 FP013 10655-6-4 3903-04546
    3-05545 5/16" 1/2-20 5/16" 5/8" 3/4" 305 FP013 10655-5-5 3903-05545
    3-05546 5/16" 9/16-18 3/8" 5/8" 3/4" 305 FP013 10655-6-5 3903-05546
    3-06546 3/8" 9/16-18 3/8" 3/4" 3/4" 306 FP015 10655-6-6 3903-06546
    3-06548 3/8" 3/4-16 1/2" 3/4" 15/16" 306 FP005 10655-8-6 3903-06548
    3-08548 1/2" 3/4-16 1/2" 7/8" 15/16" 308 FP016 10655-8-8 3903-08548
    3-08550 1/2" 7/8-14 5/8" 7/8" 1-1/16" 308 FP006 10655-10-8 3903-08550
    3-12552 3/4" 1-1/16-12 3/4" 1-1/8" 1-1/4" 312 FP008 10655-12-12 3903-12552

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
