3-08548 Couplamatic 3 Series Coupling - JIC 37° - Female Swivel - 1/2" Hose ID - 3/4-16 Thread Size

3-08548 by Couplamatic | 3 Series Coupling | 1/2" Hose ID x 3/4-16 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating | Pack of 20

Save $69.81

$174.53

$174.53 - $174.53

$174.53

$104.72

$104.72 - $104.72

$104.72

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - JIC 37° - Female Swivel

Package Quantity: 20 EA

Specifications for Variant SKU: 3-08548 Couplamatic \| 20 \|
Series:	3 Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female JIC, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	H7 Series \| H7NC Series \| H7TL Series \| H7LNC Series \| HS8 Series \| HS8NC Series \| R18 Series

3 Series — Thermoplastic

3 3 Series Thermoplastic — JIC 37°, Female Swivel, Straight

3 is the JIC 37°, Female Swivel, Straight configuration of the 3 Series Thermoplastic system, terminating SAE 100R7, 100R8 and 100R18 thermoplastic hose.

1

What are the main product features?

Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
Thermoplastic Couplings may be swaged or crimped
Not for use on reduced OD 100R7
Trivalent Zinc Plating

2

Which sizes are available?

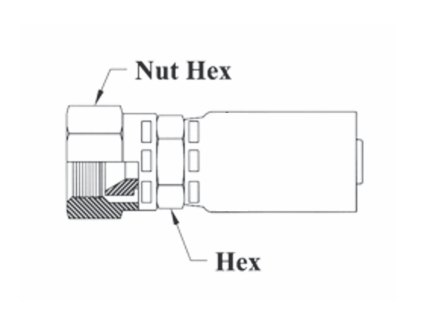

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Die 4540-	Pusher 4599-	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Die 4540-	Pusher 4599-	Parker 55	SYNFLEX 3903
3-02544	1/8"	7/16-20	1/4"	1/2"	5/8"	302	FP010	10655-4-2	3903-02544
3-03544	3/16"	7/16-20	1/4"	9/16"	5/8"	303	FP011	10655-4-3	3903-03544
3-04544	1/4"	7/16-20	1/4"	5/8"	5/8"	304	FP012	10655-4-4	3903-04544
3-04545	1/4"	1/2-20	5/16"	5/8"	3/4"	304	FP013	10655-5-4	3903-04545
3-04546	1/4"	9/16-18	3/8"	5/8"	3/4"	304	FP013	10655-6-4	3903-04546
3-05545	5/16"	1/2-20	5/16"	5/8"	3/4"	305	FP013	10655-5-5	3903-05545
3-05546	5/16"	9/16-18	3/8"	5/8"	3/4"	305	FP013	10655-6-5	3903-05546
3-06546	3/8"	9/16-18	3/8"	3/4"	3/4"	306	FP015	10655-6-6	3903-06546
3-06548	3/8"	3/4-16	1/2"	3/4"	15/16"	306	FP005	10655-8-6	3903-06548
3-08548	1/2"	3/4-16	1/2"	7/8"	15/16"	308	FP016	10655-8-8	3903-08548
3-08550	1/2"	7/8-14	5/8"	7/8"	1-1/16"	308	FP006	10655-10-8	3903-08550
3-12552	3/4"	1-1/16-12	3/4"	1-1/8"	1-1/4"	312	FP008	10655-12-12	3903-12552

i

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
