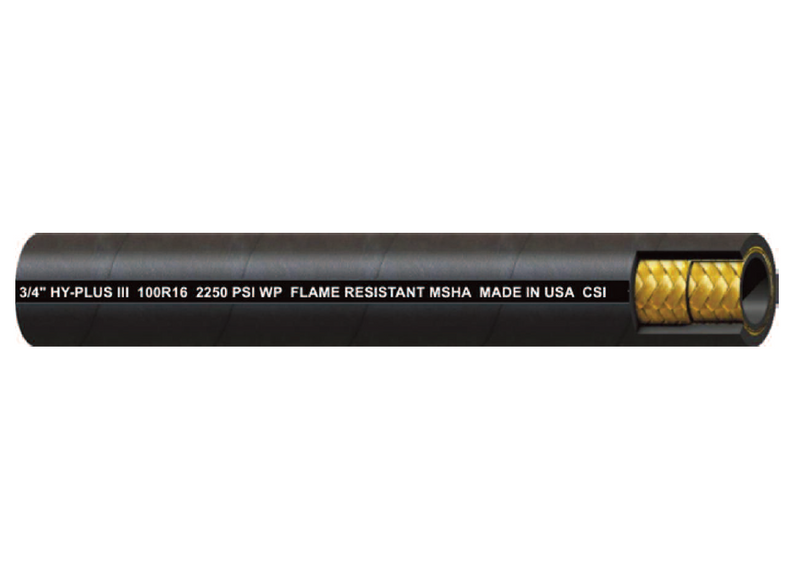

3/4" HPIII Couplamatic 2-Wire Domestic Hi-Pressure Extremely Flexible Hydraulic Hose (SAE 100R16) - 3/4" ID - 250ft

3/4" HPIII by Couplamatic | 2-Wire Domestic Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R16 | 3/4" ID | 250ft

Save $14.97

$1,662.97

$1,662.97 - $1,662.97

$1,662.97

$1,648.00

$1,648.00 - $1,648.00

$1,648.00

Couplamatic Systems Inc.
Two Wire Braid Hoses - HPIII Two Wire Domestic Hi-Pressure Extremely Flexible Hydraulic Hose - SAE 100R16

Package Quantity: 250 FT

Quantity

Specifications for Variant SKU: 3/4" HPIII Couplamatic \| 250 \|
Series:	HPIII Series
Hose Color(s):	Black
Dash Size:	-12
Internal Diameter:	0.75in
Outer Diameter:	1.103in
Applicable Specs & Approvals:	Applicable MSHA Standards, SAE 100R16
Compatible with the following Series:	Vari-Crimp Series \| A Series \| Grip Crimp Series

Applications:	High Pressure Hydraulics, Industrial or Agricultural	SAE Rating:	SAE 100R16
Cover:	Abrasion and Flame Resistant Cover, MSHA Approved	Reinforcement:	Two Wire Braids
Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" HPIII	1/4"	0.541"	5,000 lbs.	20,000 lbs.	2"	18 lbs.	250ft
3/8" HPIII	3/8"	0.693"	4,000 lbs.	16,000 lbs.	2.5"	24 lbs.	250ft
1/2" HPIII	1/2"	0.823"	3,500 lbs.	14,000 lbs.	3.5"	31 lbs.	250ft
5/8" HPIII	5/8"	0.950"	2,750 lbs.	11,000 lbs.	4"	36 lbs.	250ft
3/4" HPIII	3/4"	1.103"	2,250 lbs.	9,000 lbs.	4.8"	49 lbs.	250ft
1" HPIII	1"	1.415"	2,000 lbs.	8,000 lbs.	6"	67 lbs.	250ft
