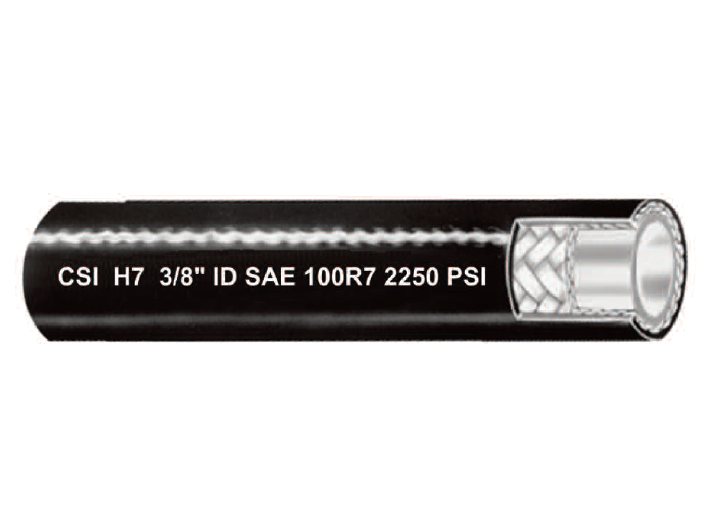

3/8" H7 Couplamatic Thermoplastic Polyester Braid Hydraulic Hose (SAE 100R7) - 3/8" ID - 250ft

3/8" H7 by Couplamatic | Braid Reinforced Hydraulic Hose | SAE 100R7 | 3/8" ID | Thermoplastic | Polyester | 250ft

Save $334.45

$836.12

$836.12 - $836.12

$836.12

$501.67

$501.67 - $501.67

$501.67

Couplamatic Systems Inc.
Polyester Braid - H7 Thermoplastic Hydraulic Hose - (SAE 100R7)

Package Quantity: 250 FT

Specifications for Variant SKU: 3/8" H7 Couplamatic \| 250 \|
Series:	H7 Series
Hose Color(s):	Black
Dash Size:	-6
Internal Diameter:	0.375in
Outer Diameter:	0.65in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7
Compatible with the following Series:	3 Series \| T Series

Applications:	Medium Pressure Hydraulics, Industrial or Agricultural	SAE Rating:	SAE 100R7
Cover:	Black Polyurethane, Perforated	Tube:	Nylon
Reinforcement:	Polyester Braid	Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/8" H7	1/8"	0.325"	3,000 lbs.	12,000 lbs.	0.5"	3 lbs.	250ft
3/16" H7	3/16"	0.433"	3,000 lbs.	12,000 lbs.	0.75"	4.9 lbs.	250ft
1/4" H7	1/4"	0.508"	2,750 lbs.	11,000 lbs.	1.5"	6 lbs.	250ft
5/16" H7	5/16"	0.585"	2,500 lbs.	10,000 lbs.	1.75"	7.5 lbs.	250ft
3/8" H7	3/8"	0.650"	2,250 lbs.	9,000 lbs.	2"	10 lbs.	250ft
1/2" H7	1/2"	0.815"	2,000 lbs.	8,000 lbs.	3"	15.6 lbs.	250ft
3/4" H7	3/4"	1.062"	1,250 lbs.	5,000 lbs.	6.5"	19 lbs.	100ft
1" H7	1"	1.335"	1,000 lbs.	4,000 lbs.	8"	27 lbs.	100ft
