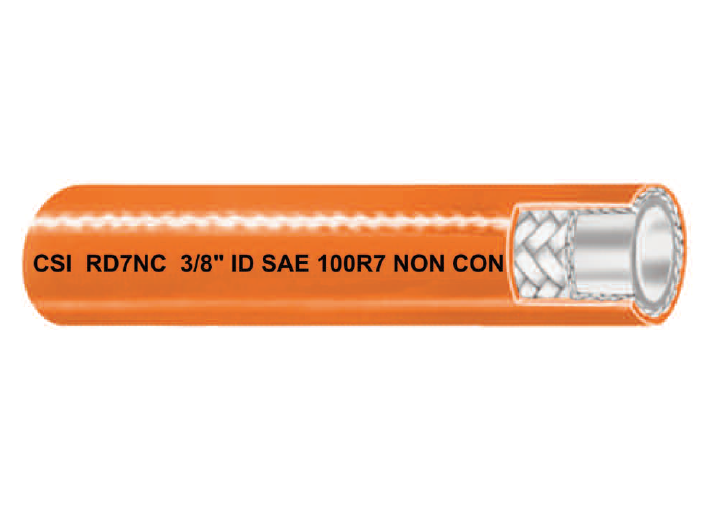

3/8" RD7NC Couplamatic Non-Conductive Thermoplastic Hydraulic Hose (Reduced OD) - Polyester Braid (SAE 100R7) - 3/8" ID - 250ft

3/8" RD7NC by Couplamatic | Non-Conductive | Thermoplastic Hydraulic Hose | Reduced OD | Polyester Braid | SAE 100R7 | 3/8" ID | 250ft

Save $342.22

$855.55

$855.55 - $855.55

$855.55

$513.33

$513.33 - $513.33

$513.33

Couplamatic Systems Inc.
Polyester Braid - RD7NC Non-Conductive Thermoplastic Hydraulic Hose (Reduced OD) - (SAE 100R7)

Package Quantity: 250 FT

Specifications for Variant SKU: 3/8" RD7NC Couplamatic \| 250 \|
Series:	RD7NC Series
Hose Color(s):	Orange
Dash Size:	-6
Internal Diameter:	0.375in
Outer Diameter:	0.618in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	ANSI/SAIA A92.2, SAE 100R7
Compatible with the following Series:	T Series

SAE 100R7 — Reduced OD, Non-Conductive

RD7NC Non-Conductive Reduced OD Thermoplastic Hydraulic Hose

Reduced outside diameter SAE 100R7 hose with a non-conductive orange cover meeting ANSI 92.2, for aerial work platform circuits.

1

What is this hose used for?

Medium Pressure Hydraulics
Industrial
Agricultural

2

What are the key specifications?

SAE Rating

SAE 100R7

Cover

Orange Non-Conductive Polyurethane, ANSI 92.2, Non-Perforated

Tube

Nylon

Reinforcement

Polyester Braid

Temperature

-40°F to +212°F (-40°C to +100°C)

Size Range

1/4" to 3/8"

3

What are the main product features?

Meets ANSI 92.2 — the aerial work platform standard for non-conductive hose.
Non-conductive cover — orange polyurethane, non-perforated.
Reduced outside diameter — fits tighter boom routing than standard 100R7.
Nylon tube, polyester braid — lightweight medium pressure construction.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Coil Footage
1/4" RD7NC	1/4"	0.455"	2,750 lbs.	11,000 lbs.	1.5"	5 lbs.	250ft
3/8" RD7NC	3/8"	0.618"	2,250 lbs.	9,000 lbs.	2.0"	10 lbs.	250ft

i

Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
