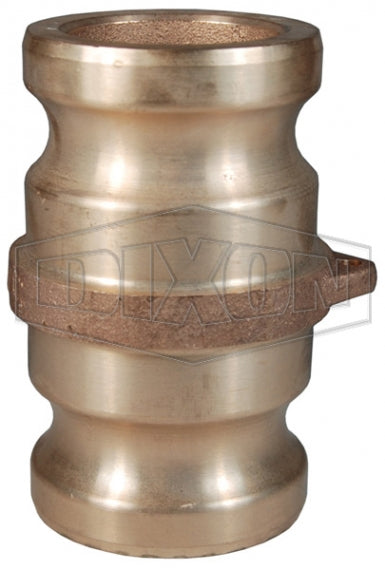

300-AA-BR by Dixon Valve | Cam & Groove Spool Adapter | Type AA | 3" Adapter x 3" Adapter | Brass

300-AA-BR by Dixon Valve | Cam & Groove Spool Adapter | Type AA | 3" Adapter x 3" Adapter | Brass

Save $21.69 Save $21.69
$195.17
$195.17 - $195.17
$195.17
$173.48
$173.48 - $173.48
$173.48

Dixon Valve
Cam & Groove Spool Adapter | Type AA | Adapter x Adapter

Designed for use with liquids.
Specifications for Variant SKU: 300-AA-BR Dixon
Shape (Orientation): Straight
Cam Type: Type AA (Spool Adapter)
Ends Configuration: 3in Male Cam & Groove, 3in Male Cam & Groove, Some Ends Match
Material(s): Brass
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperat ure 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Unplated
Malleable Iron
Part Number		 Brass
Part Number		 Size Maximum Operating Pressure
- 100-AA-SS - - 1" 250 PSI
- 125-AA-SS* - - 1-1/4" 250 PSI
150-AA-AL 150-AA-SS - - 1-1/2" 250 PSI
1520-AA-AL 1520-AA-SS - - 1-1/2" x 2" 250 PSI
200-AA-AL 200-AA-SS - 200-AA-BR 2" 250 PSI
2030-AA-AL 2030-AA-SS - - 2" x 3" 125 PSI
2040-AA-AL 2040-AA-SS* - - 2" x 4" 100 PSI
2530-AA-AL* - - - 2-1/2" x 3" 125 PSI
2540-AA-AL* - - - 2-1/2" x 4" 100 PSI
300-AA-AL 300-AA-SS - 300-AA-BR 3" 125 PSI
3040-AA-AL 3040-AA-SS* - - 3" x 4" 100 PSI
400-AA-AL 400-AA-SS 400-AA-MI - 4" 100 PSI
4050-AA-AL - - - 4" x 5" 75 PSI
4060-AA-AL 4060-AA-SS* - - 4" x 6" 75 PSI
500-AA-AL* 500-AA-SS* - - 5" 75 PSI
5060-AA-AL* - - - 5" x 6" 75 PSI
600-AA-AL 600-AA-SS* - - 6" 75 PSI

* Parts are produced as a welded fabrication
