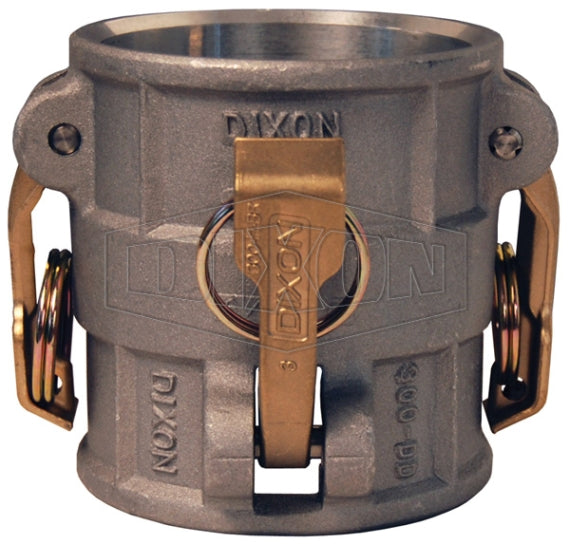

300-DD-AL by Dixon Valve | Cam & Groove Spool Coupler | Type DD | 3" Coupler x 3" Coupler | Aluminum

300-DD-AL by Dixon Valve | Cam & Groove Spool Coupler | Type DD | 3" Coupler x 3" Coupler | Aluminum

Save $5.73 Save $5.73
$71.74
$71.74 - $71.74
$71.74
$66.01
$66.01 - $66.01
$66.01

Dixon Valve
Cam & Groove Spool Coupler | Type DD | Coupler x Coupler

Designed for use with liquids.
Specifications for Variant SKU: 300-DD-AL Dixon
Shape (Orientation): Straight
Cam Type: Type DD (Spool Coupler)
Ends Configuration: 3in Female Cam & Groove, 3in Female Cam & Groove, Some Ends Match
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile rubber gasket standard.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Maximum Operating Pressure
- 150-DD-SS* 1-1/2" 250 PSI
200-DD-AL 200-DD-SS 2" 250 PSI
2030-DD-AL 2030-DD-SS 2" x 3" 125 PSI
300-DD-AL 300-DD-SS 3" 125 PSI
3040-AA-AL 3040-DD-SS* 3" x 4" 100 PSI
400-DD-AL 400-DD-SS 4" 100 PSI
4050-DD-AL* 4050-DD-SS* 4" x 5" 75 PSI
4060-AA-AL* 4060-DD-SS 4" x 6" 75 PSI
500-DD-AL* 500-DD-SS 5" 75 PSI
600-DD-AL - 6" 75 PSI

* Parts are produced as a welded fabrication
