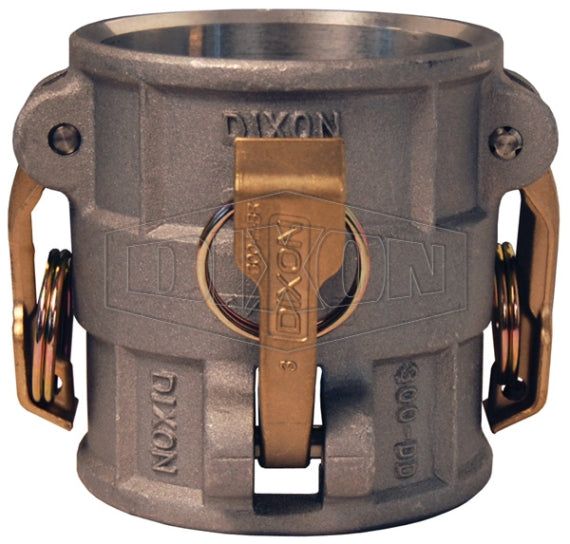

400-DD-AL by Dixon Valve | Cam & Groove Spool Coupler | Type DD | 4" Coupler x 4" Coupler | Aluminum

Name: 400-DD-AL by Dixon Valve | Cam & Groove Spool Coupler | Type DD | 4" Coupler x 4" Coupler | Aluminum
Brand: Dixon
SKU: 400-DD-AL Dixon
Price: 87.77 USD
Availability: InStock

Save $58.51

$146.28

$146.28 - $146.28

$146.28

$87.77

$87.77 - $87.77

$87.77

Dixon Valve
Cam & Groove Spool Coupler | Type DD | Coupler x Coupler

Designed for use with liquids.

Specifications for Variant SKU: 400-DD-AL Dixon
Shape (Orientation):	Straight
Cam Type:	Type DD (Spool Coupler)
Ends Configuration:	4in Female Cam & Groove, 4in Female Cam & Groove, Some Ends Match
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile rubber gasket standard.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
-	150-DD-SS*	1-1/2"	250 PSI
200-DD-AL	200-DD-SS	2"	250 PSI
2030-DD-AL	2030-DD-SS	2" x 3"	125 PSI
300-DD-AL	300-DD-SS	3"	125 PSI
3040-AA-AL	3040-DD-SS*	3" x 4"	100 PSI
400-DD-AL	400-DD-SS	4"	100 PSI
4050-DD-AL*	4050-DD-SS*	4" x 5"	75 PSI
4060-AA-AL*	4060-DD-SS	4" x 6"	75 PSI
500-DD-AL*	500-DD-SS	5"	75 PSI
600-DD-AL	-	6"	75 PSI

* Parts are produced as a welded fabrication

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
