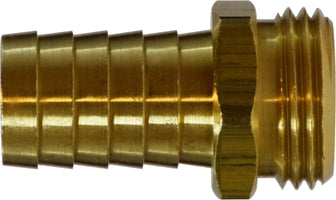

30042 (30-042) Midland Garden Hose Fitting - Barstock Male End Only - 3/4" Hose Barb x 3/4" Male GHT - Brass

30042 by Midland | Garden Hose Fitting | Barstock Male End Only | 3/4" Hose Barb x 3/4" Male GHT | Brass

Save $1.94 Save $1.94
$4.85
$4.85 - $4.85
$4.85
$2.91
$2.91 - $2.91
$2.91

Midland Industries
Brass Fitting - Garden Hose Fitting - Male End Only

Inventory @ Manufacturers Warehouse: 2796 Units
Specifications for Variant SKU: 30042 Midland
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Male GHT
Material(s): Brass
Temperature and Working Pressure Ranges:
  • From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.)
  • Note: All female connector ends should have a rubber washer inserted prior to usage.
  • Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.
Crossover Series:
29MGH 329M
Part Number Hose Barb x MGH A B Hex Approx.WT. LBS.
Barstock Brass
30039
(30-039) 		3/8" x 3/4" 1.88" 1.19" 1.06" 0.12
30040
(30-040) 		1/2" x 3/4" 1.88" 1.19" 1.06" 0.12
30041
(30-041) 		5/8" x 3/4" 1.88" 1.19" 1.06" 0.12
30042
(30-042) 		3/4" x 3/4" 1.88" 1.19" 1.06" 0.13
30045
(30-045) 		1" x 3/4" 1.94" 1.19" 1.06" 0.21
30043
(30-043) 		1" x 1" 2.34" 1.47" 1.37" 0.26
316 Stainless Steel
30040SS
(30-040SS) 		1/2" x 3/4" 1.88" 1.19" 1.06" 0.12
30041SS
(30-041SS) 		5/8" x 3/4" 1.88" 1.19" 1.06" 0.12
30042SS
(30-042SS) 		3/4" x 3/4" 1.88" 1.19" 1.06" 0.13
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
