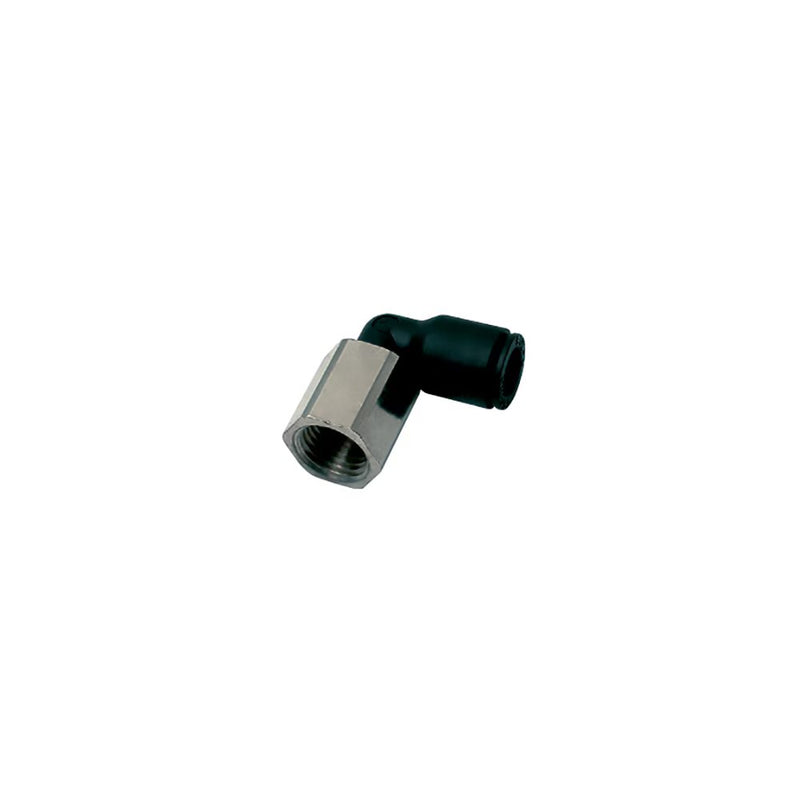

3009 04 11 by Parker | LF3000® Push-to-Connect Fittings | 5/32" Push-to-Connect x 1/8" Female NPT Thread | 13 mm Hex | .91" Length | 90° Elbow | Nylon | Pack of 10

Save $5.72

$62.92

$62.92 - $62.92

$62.92

$57.20

$57.20 - $57.20

$57.20

by Parker Hannifin
LF3000® Push-to-Connect Fittings:3009 - female elbow fractional inch tube to NPT

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3009 04 11 Parker \| 10 \|
Brand:	LF 3000®
Series:	3009 Series
Shape (Orientation):	90° Elbow
Material(s):	Nylon, Nickel-Plated Brass
Special Properties:	Silicone Free, Corrosion Resistance, Chemical Resistance

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone-Free
Markets:	Pneumatic Industrial Automation Robotic Printing Packaging Textile
Applications:	Air Cutting Fluids Inert Gases Vacuum
Pressure Range	Up to 290 psi (20 bar) 3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range	-4° to +175° F (-20° to +80° C) 3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability	28" Hg


Part Number	ØD	NPT / UNF (C)	F	G	H	E	L	Oz
3009 53 20	1/8"	10-32	8 mm	.33"	.73"	.24"	.57"	.28 Oz
3009 53 11	1/8"	1/8"	-	-	-	-	-	-
3009 53 14	1/8"	1/4"	13 mm	.33"	1.06"	.55"	.57"	.14 Oz
3009 55 11*	3/16"	1/8"	13 mm	.33"	1.02"	.37"	.90"	.15 Oz
3009 04 11	5/32"	1/8"	13 mm	.33"	.91"	.37"	.55"	.41 Oz
3009 04 14	5/32"	1/4"	16 mm	.33"	1.08"	.55"	.55"	.14 Oz
3009 04 20	5/32"	10-32	-	-	-	-	-	-
3009 56 11	1/4"	1/8"	13 mm	.43"	1.02"	.37"	.71"	.47 Oz
3009 56 14	1/4"	1/4"	16 mm	.43"	1.18"	.55"	.71"	.38 Oz
3009 56 18	1/4"	3/8"	22 mm	.43"	1.18"	.55"	.71"	2.00 Oz
3009 56 20	1/4"	10-32	-	-	-	-	-	-
3009 08 11	5/16"	1/8"	13 mm	.53"	1.12"	.37"	.91"	.50 Oz
3009 08 14	5/16"	1/4"	16 mm	.53"	1.28"	.55"	.91"	.85 Oz
3009 60 11	3/8"	1/8"	16 mm	.63"	1.24"	.37"	1.04"	.90 Oz
3009 60 14	3/8"	1/4"	16 mm	.63"	1.52"	.55"	1.04"	.90 Oz
3009 60 18	3/8"	3/8"	22 mm	.63"	1.44"	.55"	1.04"	2.00 Oz
3009 60 22	1/4"	1/2"	-	-	-	-	-	-
3009 62 14	1/2"	1/4"	19 mm	.87"	1.77"	.55"	1.40"	2.36 Oz
3009 62 18	1/2"	3/8"	22 mm	.87"	1.88"	.65"	1.38"	2.40 Oz
3009 62 22	1/2"	1/2"	27 mm	.87"	1.91"	.77"	1.40"	2.47 Oz

* Collet technology – bare brass
