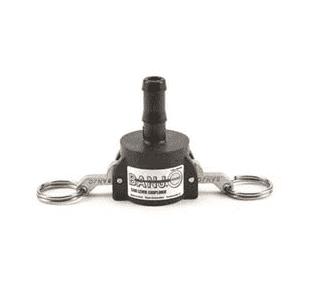

300C Banjo Polypropylene Cam Lever Coupling - Part C - 3" Female Coupler x 3" Hose Shank - 75 PSI - Gasket: EPDM

300C by Banjo | Cam Lever Coupling | Part C | 3" Female Coupler x 3" Hose Shank | 200 PSI | Gasket: EPDM | Polypropylene

Save $2.75

$24.75

$24.75 - $24.75

$24.75

$22.00

$22.00 - $22.00

$22.00

Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 3" Series

Quantity

Specifications for Variant SKU: 300C Banjo
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	3in Female Cam & Groove, 3in Hose Barb
Material(s):	Polypropylene
Seal Material(s):	EPDM

Applications:
Agriculture Industrial Fluids
Features:
Stainless steel rings, arms & pins Most complete line of polypropylene couplings available Versatile - interchangeable with all types of cam lever couplers Precision molded - insures a uniform and accurate fit Durable - Polypropylene is glass reinforced for rugged strength and durability Smooth operating - finger rings are designed for easy opening of cam levers Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread BSP threads available 1" - 3" sizes (excluding 1-1/4") Operating conditions: 3/8" thru 2" - 100 PSI at 0° F; 125 PSI at 70° F; 70 PSI at 150° F. 2-1/2", 3" & 4" Cap - 50 PSI; Couplings 75 PSI max Economical and superior in performance Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL! WARNING: Couplings should not be disconnected under pressure or with liquid in the line. For other sizes & replacement parts, see: Banjo Polypropylene Cam Lever Couplings & Replacement Parts
Guide:

1

Part Number	Type	End Type	Max PSI	Gasket
300A	Part A	3" Male Adapter x 3" Female NPT	100 PSI	None
300AB	Part A	3" Male Adapter x 3" Female British Standard Pipe - Machined	PSI details in features	EDPM Available in: Buna & FKM
300B	Part B	3" Female Coupler x 3" Male NPT	150 PSI	EPDM
303B	Part B	3" Female Coupler x 3" Extended Male NPT	200 PSI	EPDM
300BB	Part B	3" Female Coupling x 3" Male Pipe Thread British Standard Pipe	PSI details in features	EDPM Available in: Buna & FKM
300C	Part C	3" Female Coupler x 3" Hose Shank	200 PSI	EPDM
303C	Part C	3" Female Coupler with 3 Arms x 3" Hose Shank	200 PSI	EPDM
300D	Part D	3" Female Coupler x 3" Female NPT	200 PSI	EPDM
300DB	Part D	3" Female Coupling x 3" Female Pipe Thread British Standard	PSI details in features	EDPM Available in: Buna & FKM
300DBP	Part D	3" Female Coupling x 3" Female Pipe Thread-British Pipe Thread (Parallel)	PSI details in features	EDPM Available in: Buna & FKM
300E	Part E	3" Male Adapter x 3" Hose Shank	150 PSI	None
300F	Part F	3" Male Adapter x 3" Male NPT	100 PSI	None
300FB	Part F	3" Male Adapter x 3" MPT British Standard Pipe - Machined	PSI details in features	EDPM Available in: Buna & FKM
300CAP	Part CAP	3" Cap - Male Adapter	100 PSI	EPDM
300PL	Part PL	3" Plug - Female Coupler	150 PSI	N/A

Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
