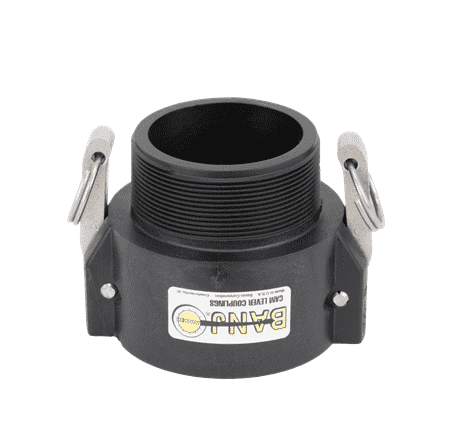

300BB Banjo Polypropylene Cam Lever Coupling - Part B - 3" Female Coupling x 3" Male Pipe Thread British Standard Pipe

300BB by Banjo | Cam Lever Coupling | Part B | 3" Female Coupling x 3" Male Pipe Thread BSP | Polypropylene

Save $1.75 Save $1.75
$23.02
$23.02 - $23.02
$23.02
$21.27
$21.27 - $21.27
$21.27

Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 3" Series
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 300BB Banjo
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 3in Male BSPP
Material(s): Polypropylene
Seal Material(s): EPDM
Applications:
  • Agriculture
  • Industrial
  • Fluids
Features:
  • Stainless steel rings, arms & pins
  • Most complete line of polypropylene couplings available
  • Versatile - interchangeable with all types of cam lever couplers
  • Precision molded - insures a uniform and accurate fit
  • Durable - Polypropylene is glass reinforced for rugged strength and durability
  • Smooth operating - finger rings are designed for easy opening of cam levers
  • Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
  • BSP threads available 1" - 3" sizes (excluding 1-1/4")
  • Operating conditions:
    • 3/8" thru 2" - 100 PSI at 0° F; 125 PSI at 70° F; 70 PSI at 150° F.
    • 2-1/2", 3" & 4" Cap - 50 PSI; Couplings 75 PSI max
  • Economical and superior in performance
  • Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
  • Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
  • WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
  • For other sizes & replacement parts, see: Banjo Polypropylene Cam Lever Couplings & Replacement Parts
    Guide:

    1
    Part Number Type End Type Max PSI Gasket
    300A Part A 3" Male Adapter x 3" Female NPT 100 PSI None
    300AB Part A 3" Male Adapter x 3" Female British Standard Pipe - Machined PSI details in features EDPM
    Available in: Buna & FKM
    300B Part B 3" Female Coupler x 3" Male NPT 150 PSI EPDM
    303B Part B 3" Female Coupler x 3" Extended Male NPT 200 PSI EPDM
    300BB Part B 3" Female Coupling x 3" Male Pipe Thread British Standard Pipe PSI details in features EDPM
    Available in: Buna & FKM
    300C Part C 3" Female Coupler x 3" Hose Shank 200 PSI EPDM
    303C Part C 3" Female Coupler with 3 Arms x 3" Hose Shank 200 PSI EPDM
    300D Part D 3" Female Coupler x 3" Female NPT 200 PSI EPDM
    300DB Part D 3" Female Coupling x 3" Female Pipe Thread British Standard PSI details in features EDPM
    Available in: Buna & FKM
    300DBP Part D 3" Female Coupling x 3" Female Pipe Thread-British Pipe Thread (Parallel) PSI details in features EDPM
    Available in: Buna & FKM
    300E Part E 3" Male Adapter x 3" Hose Shank 150 PSI None
    300F Part F 3" Male Adapter x 3" Male NPT 100 PSI None
    300FB Part F 3" Male Adapter x 3" MPT British Standard Pipe - Machined PSI details in features EDPM
    Available in: Buna & FKM
    300CAP Part CAP 3" Cap - Male Adapter 100 PSI EPDM
    300PL Part PL 3" Plug - Female Coupler 150 PSI N/A

    Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size

    Banjo

    Banjo

    Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
