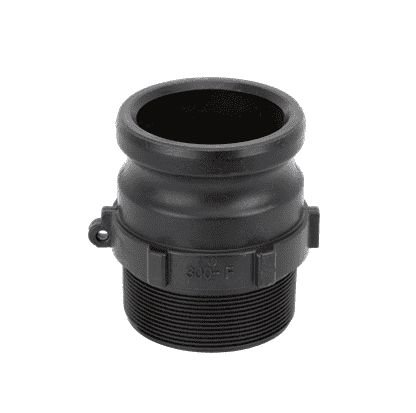

300FB Banjo Polypropylene Cam Lever Coupling - Part F - 3" Male Adapter x 3" MPT British Standard Pipe - Machined

  • $10.71
Applications:
  • Agriculture
  • Industrial
  • Fluids
Features:
  • Stainless steel rings, arms & pins
  • Most complete line of polypropylene couplings available
  • Versatile - interchangeable with all types of cam lever couplers
  • Precision molded - insures a uniform and accurate fit
  • Durable - Polypropylene is glass reinforced for rugged strength and durability
  • Smooth operating - finger rings are designed for easy opening of cam levers
  • Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
  • BSP threads available 1" - 3" sizes (excluding 1-1/4")
  • Operating conditions:
    • 3/8" thru 2" - 100 PSI at 0 deg. F; 125 PSI at 70 deg. F; 70 PSI at 150 deg. F.
    • 2-1/2", 3" & 4" Cap - 50 PSI; Couplings 75 PSI max
  • Economical and superior in performance
  • Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
  • Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
  • WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
  • For other sizes & replacement parts, see: Banjo Polypropylene Cam Lever Couplings & Replacement Parts
    Guide:
    Poly Guide

    Part Number Type End Type Max PSI Gasket Drawing
    300A Part A 3" Male Adapter x 3" Female NPT 75 PSI N/A 300A.pdf
    300AB Part A 3" Male Adapter x 3" Female British Standard Pipe - Machined N/A N/A N/A
    300ABP Part A 3" Male Adapter x Female British Pipe Thread (Parallel) - Machined N/A N/A N/A
    300B Part B 3" Female Coupler x 3" Male NPT 75 PSI EPDM 300B.pdf
    303B Part B 3" Female Coupler x 3" Extended Male NPT 75 PSI EPDM 303B.pdf
    300BB Part B 3" Female Coupling x 3" Male Pipe Thread British Standard Pipe N/A N/A N/A
    300C Part C 3" Female Coupler x 3" Hose Shank 75 PSI EPDM 300C.pdf
    303C Part C 3" Female Coupler with 3 Arms x 3" Hose Shank 75 PSI EPDM 303C.pdf
    300D Part D 3" Female Coupler x 3" Female NPT 75 PSI EPDM 300D.pdf
    300DB Part D 3" Female Coupling x 3" Female Pipe Thread British Standard N/A N/A N/A
    300DBP Part D 3" Female Coupling x 3" Female Pipe Thread-British Pipe Thread (Parallel) N/A N/A N/A
    300E Part E 3" Male Adapter x 3" Hose Shank 75 PSI N/A 300E.pdf
    300F Part F 3" Male Adapter x 3" Male NPT 75 PSI N/A 300F.pdf
    300FB Part F 3" Male Adapter x 3" MPT British Standard Pipe - Machined N/A N/A N/A
    300CAP Part CAP 3" Cap - Male Adapter 50 PSI EPDM 300CAP.pdf
    300PL Part PL 3" Plug - Female Coupler 75 PSI N/A 300PL.pdf

    Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size
