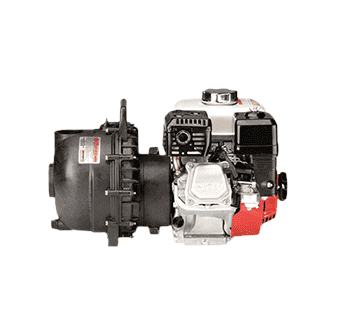

300PH13W Banjo Polypropylene 3" Wet Seal Pump with 13 HP Honda® Engine with Electric Start & Pull Rope

300PH13W by Banjo | Centrifugal Pumps | 3" Wet Seal Pump with 13 HP Honda® Engine with Electric Start & Pull Rope | Polypropylene

Save $1,364.37 Save $1,364.37
$3,410.92
$3,410.92 - $3,410.92
$3,410.92
$2,046.55
$2,046.55 - $2,046.55
$2,046.55
Specifications for Variant SKU: 300PH13W Banjo
Applications:
  • Agriculture
  • Industrial
  • Fluids
Features:
  • Stainless steel rings, arms & pins
  • Most complete line of polypropylene couplings available
  • Versatile - interchangeable with all types of cam lever couplers
  • Precision molded - insures a uniform and accurate fit
  • Durable - Polypropylene is glass reinforced for rugged strength and durability
  • Smooth operating - finger rings are designed for easy opening of cam levers
  • Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
  • BSP threads available 1" - 3" sizes (excluding 1-1/4")
  • Operating conditions:
    • 3/8" thru 2" - 100 PSI at 0° F; 125 PSI at 70° F; 70 PSI at 150° F.
    • 2-1/2", 3" & 4" Cap - 50 PSI; Couplings 75 PSI max
  • Economical and superior in performance
  • Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
  • Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
  • WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
  • For other sizes & replacement parts, see: Banjo Polypropylene Cam Lever Couplings & Replacement Parts
    Guide:

    Part Number Type End Type Max PSI Gasket
    300A Part A 3" Male Adapter x 3" Female NPT 100 PSI None
    300AB Part A 3" Male Adapter x 3" Female British Standard Pipe - Machined PSI details in features EDPM
    Available in: Buna & FKM
    300B Part B 3" Female Coupler x 3" Male NPT 150 PSI EPDM
    303B Part B 3" Female Coupler x 3" Extended Male NPT 200 PSI EPDM
    300BB Part B 3" Female Coupling x 3" Male Pipe Thread British Standard Pipe PSI details in features EDPM
    Available in: Buna & FKM
    300C Part C 3" Female Coupler x 3" Hose Shank 200 PSI EPDM
    303C Part C 3" Female Coupler with 3 Arms x 3" Hose Shank 200 PSI EPDM
    300D Part D 3" Female Coupler x 3" Female NPT 200 PSI EPDM
    300DB Part D 3" Female Coupling x 3" Female Pipe Thread British Standard PSI details in features EDPM
    Available in: Buna & FKM
    300DBP Part D 3" Female Coupling x 3" Female Pipe Thread-British Pipe Thread (Parallel) PSI details in features EDPM
    Available in: Buna & FKM
    300E Part E 3" Male Adapter x 3" Hose Shank 150 PSI None
    300F Part F 3" Male Adapter x 3" Male NPT 100 PSI None
    300FB Part F 3" Male Adapter x 3" MPT British Standard Pipe - Machined PSI details in features EDPM
    Available in: Buna & FKM
    300CAP Part CAP 3" Cap - Male Adapter 100 PSI EPDM
    300PL Part PL 3" Plug - Female Coupler 150 PSI N/A

    Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size

    Banjo

    Banjo

    Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
