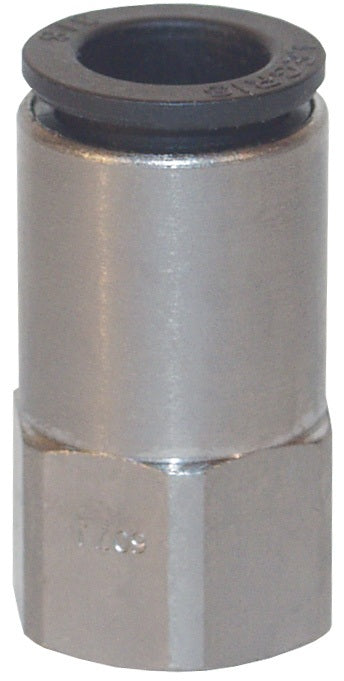

30146014 by Dixon Valve | Legris Push-In Fitting | Female Connector | 3/8" Tube OD x 1/4" Female NPT | Nylon / Nickel-Plated Brass

30146014 by Dixon Valve | Legris Push-In Fitting | Female Connector | 3/8" Tube OD x 1/4" Female NPT | Nylon / Nickel-Plated Brass

Save $1.24 Save $1.24
$13.33
$13.33 - $13.33
$13.33
$12.09
$12.09 - $12.09
$12.09

Dixon Valve & Coupling
Legris Push-In Fitting | Female Connector | Female NPT x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.
Specifications for Variant SKU: 30146014 Dixon
Brand: Legris
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-to-Connect, 1/4in Female NPT
Material(s): Nickel-Plated Brass, Nylon
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
  • Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Pre-applied thread sealant on all tapered male pipe threads.
Construction:
  • Nickel-plated brass threads.
  • Black body is glass-filled nylon.
  • Nitrile Rubber D seal.
  • Polypropylene release button.
  • Silicone free.
Specifications:
  • Working pressure: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Pressure rating given at ambient temperature 70°F/21°C.
Part Number Tube O.D. Female NPT
30145311 1/8" 1/8"
30145314 1/8" 1/4"
30140411 5/32" 1/8"
31140414 5/32" 1/4"
30145611 1/4" 1/8"
30145614 1/4" 1/4"
30140811 5/16" 1/8"
30140814 5/16" 1/4"
30146011 3/8" 1/8"
30146014 3/8" 1/4"
30146018 3/8" 3/8"
