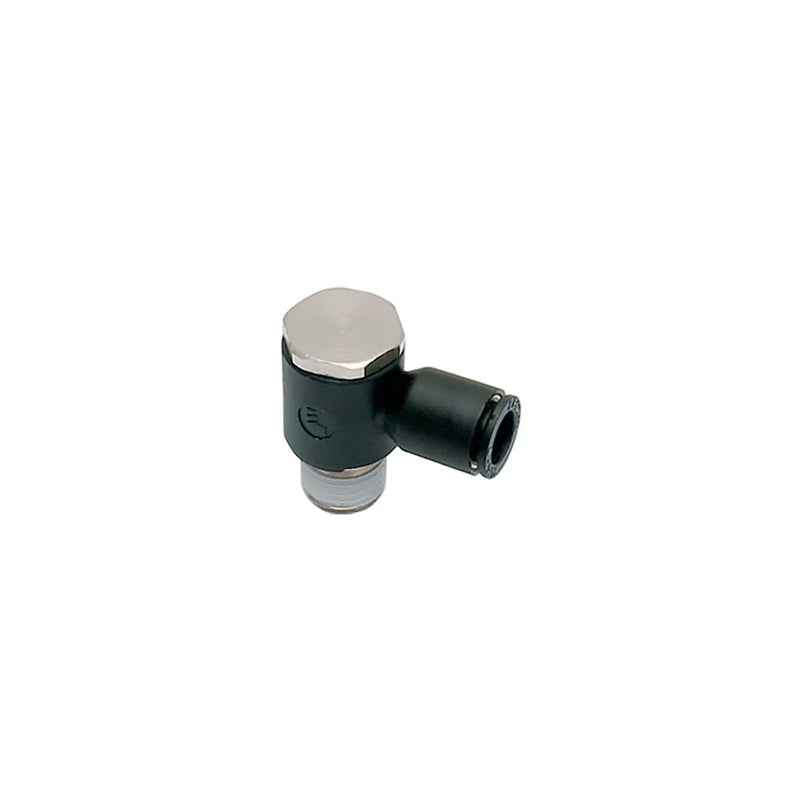

3018 56 18 by Parker | Single Banjo | 1/4" Push-to-Connect x 3/8" Male NPT Thread | 21 mm Hex | 1.55" Length | Banjo | Nylon | Pack of 10

Save $124.67

$311.67

$311.67 - $311.67

$311.67

$187.00

$187.00 - $187.00

$187.00

by Parker Hannifin
Banjo Fittings:3018 - banjo fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3018 56 18 Parker \| 10 \|
Series:	3018 Series
Shape (Orientation):	Banjo
Material(s):	Nickel-Plated Brass, Nylon, Polypropylene
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Product Features:	Compact design with minimum space between fittings Banjo bolt designed for maximum flow Easy access, even when fittings are close together Easy assembly and automatic sealing: • with pre-applied thread sealant on tapered threads • with an integral O-ring seal on parallel threads Safe operation: orientation of tube is ensured 100% leak-tested in production Date coding to guarantee quality and traceability Silicone-Free Modular Effortless stacking of banjo bodies to allow construction of 2 to 6 outlets Orientable 360° for perfect alignment Modular: tube diameters may be different
Markets:	Automotive Textile Packaging Pneumatic Industrial
Applications:	Robotics Automotive Process Pneumatics Semi-Conductors Textile Packaging
Compatible Fluids	Compressed air Other fluids: please consult us
Working Pressure	290 psi (20 bar) maximum
Vacuum Capability	28" Hg
Working Pressure	-4° to 176° F (-20° to 80° C


Part Number	ØD	NPT (C)	F	G	H	L1	L2	Oz
3018 04 11	5/32"	1/8"	13 mm	.33"	.73"	.28"	.73"	.72 Oz
3018 55 11	3/16"	1/8"	14 mm	.43"	.73"	.27"	1.02"	.89 Oz
3018 56 11	1/4"	1/8"	13 mm	.43"	.73"	.28"	.83"	.75 Oz
3018 56 14	1/4"	1/4"	17 mm	.43"	.89"	.37"	.91"	1.41 Oz
3018 56 18	1/4"	3/8"	21 mm	.43"	1.04"	.43"	1.12"	2.60 Oz
3018 08 11	5/16"	1/8"	14 mm	.43"	.73"	.27"	.98"	.23 Oz
3018 08 14	5/16"	1/4"	18 mm	.43"	.88"	.37"	1.06"	2.25 Oz
3018 60 14	3/8"	1/4"	17 mm	.63"	.89"	.37"	1.12"	2.34 Oz
3018 60 18	3/8"	3/8"	21 mm	.63"	1.04"	.43"	1.20"	2.37 Oz
