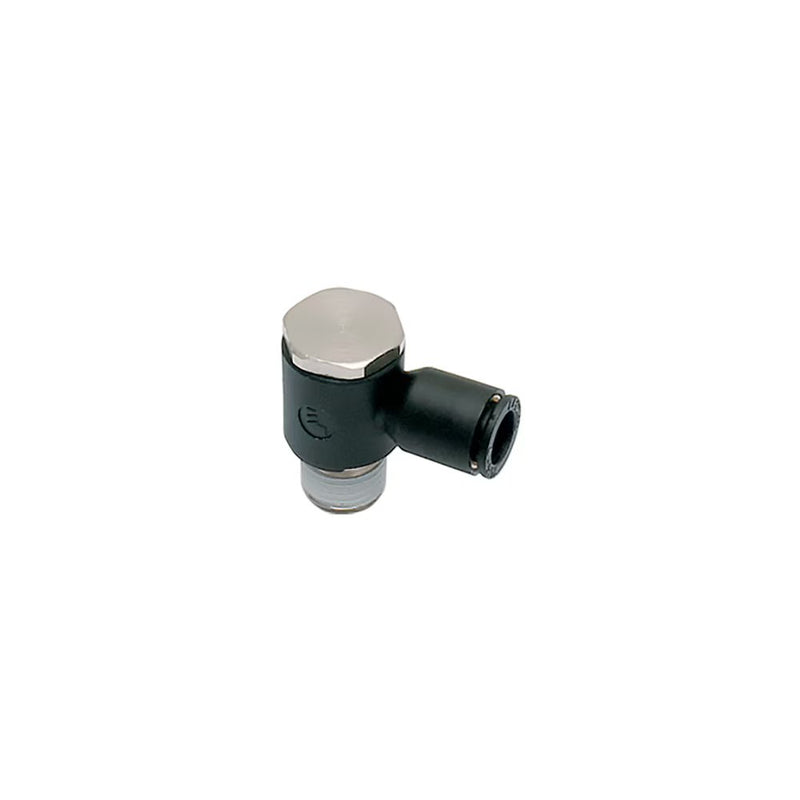

3018 60 18 by Parker | Single Banjo | 3/8" Push-to-Connect x 1/2" Male NPT Thread | 21 mm Hex | 1.63" Length | Banjo | Nylon | Pack of 10

Save $123.15

$307.88

$307.88 - $307.88

$307.88

$184.73

$184.73 - $184.73

$184.73

by Parker Hannifin
Banjo Fittings:3018 - banjo fractional inch tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3018 60 18 Parker \| 10 \|
Series:	3018 Series
Shape (Orientation):	Banjo
Material(s):	Nickel-Plated Brass, Nylon, Polypropylene
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Product Features:	Compact design with minimum space between fittings Banjo bolt designed for maximum flow Easy access, even when fittings are close together Easy assembly and automatic sealing: • with pre-applied thread sealant on tapered threads • with an integral O-ring seal on parallel threads Safe operation: orientation of tube is ensured 100% leak-tested in production Date coding to guarantee quality and traceability Silicone-Free Modular Effortless stacking of banjo bodies to allow construction of 2 to 6 outlets Orientable 360° for perfect alignment Modular: tube diameters may be different
Markets:	Automotive Textile Packaging Pneumatic Industrial
Applications:	Robotics Automotive Process Pneumatics Semi-Conductors Textile Packaging
Compatible Fluids	Compressed air Other fluids: please consult us
Working Pressure	290 psi (20 bar) maximum
Vacuum Capability	28" Hg
Working Pressure	-4° to 176° F (-20° to 80° C


Part Number	ØD	NPT (C)	F	G	H	L1	L2	Oz
3018 04 11	5/32"	1/8"	13 mm	.33"	.73"	.28"	.73"	.72 Oz
3018 55 11	3/16"	1/8"	14 mm	.43"	.73"	.27"	1.02"	.89 Oz
3018 56 11	1/4"	1/8"	13 mm	.43"	.73"	.28"	.83"	.75 Oz
3018 56 14	1/4"	1/4"	17 mm	.43"	.89"	.37"	.91"	1.41 Oz
3018 56 18	1/4"	3/8"	21 mm	.43"	1.04"	.43"	1.12"	2.60 Oz
3018 08 11	5/16"	1/8"	14 mm	.43"	.73"	.27"	.98"	.23 Oz
3018 08 14	5/16"	1/4"	18 mm	.43"	.88"	.37"	1.06"	2.25 Oz
3018 60 14	3/8"	1/4"	17 mm	.63"	.89"	.37"	1.12"	2.34 Oz
3018 60 18	3/8"	3/8"	21 mm	.63"	1.04"	.43"	1.20"	2.37 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
