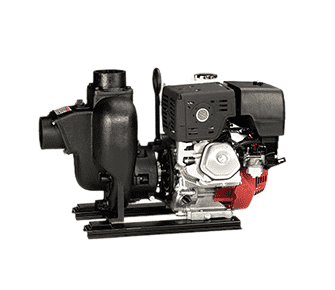

301PIH13W Banjo 3" Cast Iron Wet Seal Pump with 13 HP Honda® Engine with Electric Start & Pull Rope

301PIH13W by Banjo | Centrifugal Pumps | 3" Cast Iron Wet Seal Pump with 13 HP Honda® Engine with Electric Start & Pull Rope

Save $2,091.20 Save $2,091.20
$5,228.00
$5,228.00 - $5,228.00
$5,228.00
$3,136.80
$3,136.80 - $3,136.80
$3,136.80
Specifications for Variant SKU: 301PIH13W Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: 3" Cast Iron Wet Seal 301 Series Pump Instruction Manual Video: N/A
Replacement Parts: Replacement Parts for 3" Cast Iron Wet Seal Pumps with Gas Engines
Features:
  • New compact design
  • Run Dry Capability
  • Durable cast iron construction
  • Dynamically balanced impeller
  • Replaceable inlet & outlet flanges
  • Graphite loaded silicon carbide seal with stainless steel cup and spring with FKM (viton type) rubber
  • Pump end separated from engine
  • Double seal contained in ethylene glycol reservoir
  • 350 gallons per minute
  • 63 PSI maximum pressure
Notes:
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower
3" Cast Iron Wet Seal Pumps with Gas Engines
301PIH13W 3" Cast Iron Wet Seal Pump with 13 HP Honda® Engine with Electric Start & Pull Rope 13 HP ---
3" Cast Iron Bearing Pedestal
301PBIW 3" Cast Iron Wet Seal Pump with Bearing Pedestal N/A (Made to Order)
3" Cast Iron Pump Only
301POIW 3" Cast Iron Wet Seal Pump Only N/A (Made to Order)
Polyethylene Suction Basket Strainers
300SBS 3" Female Thread Poly Basket N/A ---
Replacement Parts for 3" Cast Iron Wet Seal Pumps
Item Part Number Description Quantity Required
1 18001 Pump Housing 1
2 18106 Flat Head Socket Cap Screw 2
3 12777 1/2" Plug 2
4 18013 Inlet/Check EPDM Gasket 1
5 18008 NPT Outlet Flange 1
6 18012 NPT Inlet Flange 1
7 13777 3/4" Plug 2
8 18004 Wear Plate 1
9 18009 EPDM Outlet Gasket 1
10 V20018 3/8" Lock Washer 18
11 V20019 3/8" 16 SS Hex Nut 6
12 18129 Clamp Assembly Keyed 1
13 18200A Wet Seal Assembly 1
14 18021 Adapter Gasket 1
15 17704 3/8"-16 x 1-1/4" HHCS 4
16 18033 Handle 1
17 18034 5/8"-11 Jam Nut 1
18 18500 Bearing Pedestal 1
19 18010SS 3/8"-16 x 1-1/8" HHCS 8
20 18218 3/8"-16 x 24 x 2-1/8" SS Stud 6
21 18206 Impeller 1
22 18202A Cover Plate 1
23 18021 Adapter Gasket 1
24 15035E EPDM Mechanical Seal Assembly 1
25 18203A Wet Seal Reservoir 1
26 13778 O-Ring 2
27 UV15163 O-Ring 2
