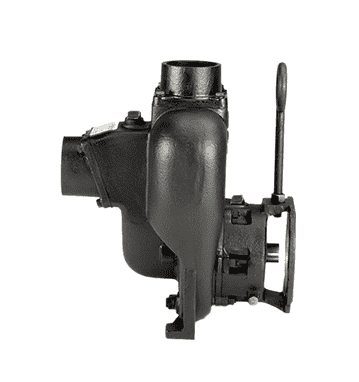

301POIW by Banjo | Centrifugal Pumps | 3" Cast Iron Wet Seal Pump Only | Stainless Steel

Save $227.06 Save $227.06
Original price $2,043.57
Original price $2,043.57 - Original price $2,043.57
Original price $2,043.57
Current price $1,816.51
$1,816.51 - $1,816.51
Current price $1,816.51

Banjo Self-Priming Centrifugal Pumps - 3" Cast Iron Wet Seal Pumps with Gas Engines & Replacement Parts

Specifications for Variant SKU: 301POIW Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: 3" Cast Iron Wet Seal 301 Series Pump Instruction Manual Video: N/A
Replacement Parts: Replacement Parts for 3" Cast Iron Wet Seal Pumps with Gas Engines
Features:
  • New compact design
  • Run Dry Capability
  • Durable cast iron construction
  • Dynamically balanced impeller
  • Replaceable inlet & outlet flanges
  • Graphite loaded silicon carbide seal with stainless steel cup and spring with FKM (viton type) rubber
  • Pump end separated from engine
  • Double seal contained in ethylene glycol reservoir
  • 350 gallons per minute
  • 63 PSI maximum pressure
Notes:
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower
3" Cast Iron Wet Seal Pumps with Gas Engines
301PIH13W 3" Cast Iron Wet Seal Pump with 13 HP Honda® Engine with Electric Start & Pull Rope 13 HP ---
3" Cast Iron Bearing Pedestal
301PBIW 3" Cast Iron Wet Seal Pump with Bearing Pedestal N/A (Made to Order)
3" Cast Iron Pump Only
301POIW 3" Cast Iron Wet Seal Pump Only N/A (Made to Order)
Polyethylene Suction Basket Strainers
300SBS 3" Female Thread Poly Basket N/A ---
Replacement Parts for 3" Cast Iron Wet Seal Pumps
Item Part Number Description Quantity Required
1 18001 Pump Housing 1
2 18106 Flat Head Socket Cap Screw 2
3 12777 1/2" Plug 2
4 18013 Inlet/Check EPDM Gasket 1
5 18008 NPT Outlet Flange 1
6 18012 NPT Inlet Flange 1
7 13777 3/4" Plug 2
8 18004 Wear Plate 1
9 18009 EPDM Outlet Gasket 1
10 V20018 3/8" Lock Washer 18
11 V20019 3/8" 16 SS Hex Nut 6
12 18129 Clamp Assembly Keyed 1
13 18200A Wet Seal Assembly 1
14 18021 Adapter Gasket 1
15 17704 3/8"-16 x 1-1/4" HHCS 4
16 18033 Handle 1
17 18034 5/8"-11 Jam Nut 1
18 18500 Bearing Pedestal 1
19 18010SS 3/8"-16 x 1-1/8" HHCS 8
20 18218 3/8"-16 x 24 x 2-1/8" SS Stud 6
21 18206 Impeller 1
22 18202A Cover Plate 1
23 18021 Adapter Gasket 1
24 15035E EPDM Mechanical Seal Assembly 1
25 18203A Wet Seal Reservoir 1
26 13778 O-Ring 2
27 UV15163 O-Ring 2
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
