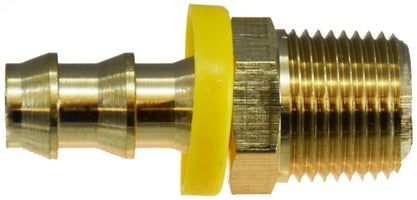

30204 (30205) Midland Push-On Fitting - Male Adapter - 3/8" Hose ID x 3/8" Male NPTF - Brass

30204 by Midland | Push-On Fitting | 3/8" Hose ID x 3/8" Male NPTF | Adapter | Brass

Save $0.22 Save $0.22
$2.01
$2.01 - $2.01
$2.01
$1.79
$1.79 - $1.79
$1.79

Midland Industries
Brass Fitting - Push On Barb Fitting - Male Adapter

Inventory @ Manufacturers Warehouse: 14161 Units
Specifications for Variant SKU: 30204 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-On Hose Barb, 3/8in Male NPTF
Material(s): Brass

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29PO1 129PO1 301 P990A HLM 100B-1 KA-MB 272 29PO 725 625 BPN 941 30182
Part Number Hose ID x Male NPTF A B Hex Approx. Weight
(Lbs.)
30200
(30-200) 		1/4" x 1/8" 1.43" 0.87" 0.50" 0.04
30201
(30-201) 		1/4" x 1/4" 1.66" 0.87" 0.56" 0.06
30211
(30-211) 		1/4" x 3/8" 1.66" 0.87" 0.68" 0.06
30208 1/4" x 1/2" 1.83" 0.88" 0.88" 0.10
30212
(30-212) 		5/16" x 1/8" 1.42" 0.77" 0.43" 0.04
30213
(30-213) 		5/16" x 1/4" 1.66" 0.87" 0.56" 0.06
30202
(30-202) 		3/8" x 1/8" 1.53" 0.97" 0.50" 0.04
30203
(30-203) 		3/8" x 1/4" 1.69" 0.89" 0.56" 0.07
30204
(30-204) 		3/8" x 3/8" 1.76" 0.97" 0.68" 0.08
30205
(30-205) 		3/8" x 1/2" 1.97" 0.97" 0.87" 0.10
30392
(30-392) 		3/8" x 3/4" 1.97" 0.92" 1.06" 0.16
30216
(30-216) 		1/2" x 1/4" 1.76" 0.97" 0.68" 0.08
30206
(30-206) 		1/2" x 3/8" 1.76" 0.97" 0.68" 0.09
30207
(30-207) 		1/2" x 1/2" 1.97" 0.97" 0.87" 0.14
30217
(30-217) 		1/2" x 3/4" 1.97" 0.97" 1.06" 0.16
30218 1/2" x 1" 2.29" 0.97" 1.37" 0.34
30219
(30-219) 		5/8" x 3/8" 2.34" 1.50" 0.75" 0.12
30209
(30-209) 		5/8" x 1/2" 2.45" 1.45" 0.87" 0.16
30214
(30-214) 		5/8" x 3/4" 2.45" 1.45" 1.06" 0.18
30215
(30-215) 		3/4" x 1/2" 2.45" 1.45" 0.87" 0.21
30210
(30-210) 		3/4" x 3/4" 2.45" 1.45" 1.06" 0.20
30238
(30-238) 		1" x 3/4" 2.93" 1.50" 1.25" 0.43
30239
(30-239) 		1" x 1" 3.11" 1.50" 1.37" 0.49
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
