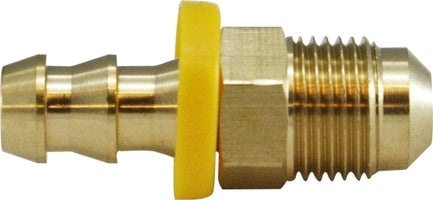

30241 (30-241) Midland Push On Hose Barb Fitting - Male SAE Flare Adapter - 1/2-20 UNF Thread - 1/4" Hose ID x 5/16" 45° Male Flare - Brass

30241 by Midland | Push On Hose Barb Fitting | SAE Flare | 1/2-20 UNF Thread | 1/4" Hose ID x 5/16" 45° Male Flare | Adapter | Brass

Save $0.46

$4.15

$4.15 - $4.15

$4.15

$3.69

$3.69 - $3.69

$3.69

Midland Industries
Brass Fitting - Push On Barb Fitting - Male SAE Flare Adapter

Inventory @ Manufacturers Warehouse: 57 Units

Quantity

Specifications for Variant SKU: 30241 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/16in Male SAE 45 Flare, 1/4in Push-On Hose Barb
Material(s):	Brass

SPECIFICATIONS

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29PO3	129PO4	100B-3	KA-MS	727	945	682	302	282


Part Number	Hose ID x 45° Male Flare	UNF Thread	A	B	Hex	Approx. Weight (Lbs.)
30240 (30-240)	1/4" x 1/4"	7/16-20	1.45"	0.75"	0.43	0.04
30241 (30-240)	1/4" x 5/16"	1/2-20	1.59"	0.84"	0.50	0.04
30249 (30-249)	5/16" x 5/16"	1/2-20	1.60"	0.80"	0.50	0.06
30271 (30-271)	3/8" x 5/16"	1/2-20	1.64"	0.86"	0.50	0.08
30243 (30-243)	3/8" x 3/8"	5/8-18	1.83"	0.92"	0.62	0.08
30245 (30-245)	1/2" x 1/2"	3/4-16	1.98"	1.02"	0.875	0.10
30246 (30-246)	5/8" x 5/8"	7/8-14	2.73"	1.50"	0.87	0.19
30247 (30-247)	3/4" x 3/4	1-1/16-14	2.98"	1.50"	1.06	0.32

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
