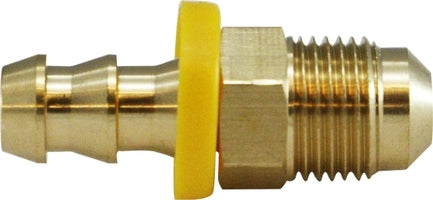

30243 (30-243) Midland Push On Hose Barb Fitting - Male SAE Flare Adapter - 5/8-18 UNF Thread - 3/8" Hose ID x 3/8" 45° Male Flare - Brass

30243 by Midland | Push On Hose Barb Fitting | SAE Flare | 5/8-18 UNF Thread | 3/8" Hose ID x 3/8" 45° Male Flare | Adapter | Brass

Save $0.35

$3.18

$3.18 - $3.18

$3.18

$2.83

$2.83 - $2.83

$2.83

Midland Industries
Brass Fitting - Push On Barb Fitting - Male SAE Flare Adapter

Inventory @ Manufacturers Warehouse: 933 Units

Quantity

Specifications for Variant SKU: 30243 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male SAE 45 Flare, 3/8in Push-On Hose Barb
Material(s):	Brass

SPECIFICATIONS

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29PO3	129PO4	100B-3	KA-MS	727	945	682	302	282


Part Number	Hose ID x 45° Male Flare	UNF Thread	A	B	Hex	Approx. Weight (Lbs.)
30240 (30-240)	1/4" x 1/4"	7/16-20	1.45"	0.75"	0.43	0.04
30241 (30-240)	1/4" x 5/16"	1/2-20	1.59"	0.84"	0.50	0.04
30249 (30-249)	5/16" x 5/16"	1/2-20	1.60"	0.80"	0.50	0.06
30271 (30-271)	3/8" x 5/16"	1/2-20	1.64"	0.86"	0.50	0.08
30243 (30-243)	3/8" x 3/8"	5/8-18	1.83"	0.92"	0.62	0.08
30245 (30-245)	1/2" x 1/2"	3/4-16	1.98"	1.02"	0.875	0.10
30246 (30-246)	5/8" x 5/8"	7/8-14	2.73"	1.50"	0.87	0.19
30247 (30-247)	3/4" x 3/4	1-1/16-14	2.98"	1.50"	1.06	0.32
