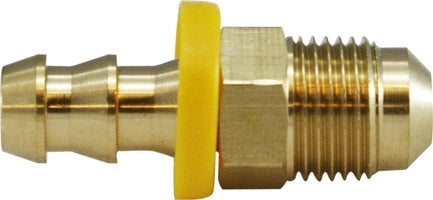

30271 (30-271) Midland Push On Hose Barb Fitting - Male SAE Flare Adapter - 1/2-20 UNF Thread - 3/8" Hose ID x 5/16" 45° Male Flare - Brass

30271 by Midland | Push On Hose Barb Fitting | SAE Flare | 1/2-20 UNF Thread | 3/8" Hose ID x 5/16" 45° Male Flare | Adapter | Brass

Save $1.71 Save $1.71
$4.28
$4.28 - $4.28
$4.28
$2.57
$2.57 - $2.57
$2.57

Midland Industries
Brass Fitting - Push On Barb Fitting - Male SAE Flare Adapter

Inventory @ Manufacturers Warehouse: 629 Units
Specifications for Variant SKU: 30271 Midland
Shape (Orientation): Straight
Ends Configuration: 5/16in Male SAE 45 Flare, 3/8in Push-On Hose Barb
Material(s): Brass

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29PO3 129PO4 100B-3 KA-MS 727 945 682 302 282
Part Number Hose ID x 45° Male Flare UNF Thread A B Hex Approx. Weight
(Lbs.)
30240
(30-240) 		1/4" x 1/4" 7/16-20 1.45" 0.75" 0.43 0.04
30241
(30-240) 		1/4" x 5/16" 1/2-20 1.59" 0.84" 0.50 0.04
30249
(30-249) 		5/16" x 5/16" 1/2-20 1.60" 0.80" 0.50 0.06
30271
(30-271) 		3/8" x 5/16" 1/2-20 1.64" 0.86" 0.50 0.08
30243
(30-243) 		3/8" x 3/8" 5/8-18 1.83" 0.92" 0.62 0.08
30245
(30-245) 		1/2" x 1/2" 3/4-16 1.98" 1.02" 0.875 0.10
30246
(30-246) 		5/8" x 5/8" 7/8-14 2.73" 1.50" 0.87 0.19
30247
(30-247) 		3/4" x 3/4 1-1/16-14 2.98" 1.50" 1.06 0.32
