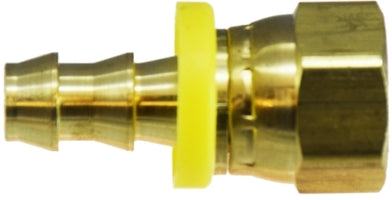

30343 (30-343) Midland Push On Hose Barb - Female Ballseat Swivel - 3/8" Hose ID x 1/4" Female NPSM - Brass

30343 by Midland | Push On Hose Barb | Ballseat Swivel | 3/8" Hose ID x 1/4" Female NPSM | Brass

Save $1.12 Save $1.12
$10.11
$10.11 - $10.11
$10.11
$8.99
$8.99 - $8.99
$8.99

Midland Industries
Brass Fitting - Push On Barb Fitting - Female Ballseat Swivel

Inventory @ Manufacturers Warehouse: 61 Units
Specifications for Variant SKU: 30343 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Female NPSM
Material(s): Brass
Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29P04 129PO8 628 278 29SPO 731 NPSM
Part Number Hose ID x Female NPSM A B Hex Approx. Weight
(Lbs.)
30340
(30-340) 		1/4" x 1/8" 1.39" 0.85" 0.50" 0.06
30341
(30-341) 		1/4" x 1/4" 1.47" 0.82" 0.68" 0.06
30342
(30-342) 		1/4" x 3/8" 1.40" 0.77" 0.68" 0.09
30343
(30-343) 		3/8" x 1/4" 1.61" 0.97" 0.68" 0.08
30344
(30-344) 		3/8" x 3/8" 1.75" 0.95" 0.81" 0.10
30430
(30-430) 		3/8" x 1/2" 1.79" 0.97" 0.93" 0.11
30346
(30-346) 		1/2" x 1/2" 1.88" 1.09" 0.93" 0.12
30345
(30-345) 		1/2" x 3/4" 2.36" 1.02" 1.18" 0.18
30349
(30-349) 		3/4" x 3/4" 2.36" 1.55" 1.18" 0.22
