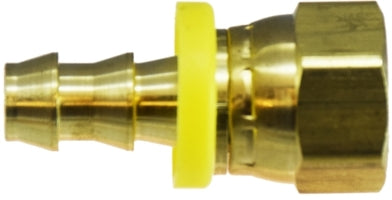

30345 (30-345) by Midland | Push On Hose Barb | Female Ballseat Swivel | 1/2" Hose ID x 3/4" Female NPSM | Straight | Brass

Save $2.44

$15.71

$15.71 - $15.71

$15.71

$13.27

$13.27 - $13.27

$13.27

Midland Industries
Brass Fitting - Push On Barb Fitting - Female Ballseat Swivel

Quantity

Specifications for Variant SKU: 30345 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/2in Push-On Hose Barb, 3/4in Female NPSM
Material(s):	Brass

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29P04	129PO8	628	278	29SPO	731	NPSM


Part Number	Hose ID x Female NPSM	A	B	Hex	Approx. Weight (Lbs.)
30340 (30-340)	1/4" x 1/8"	1.39"	0.85"	0.50"	0.06
30341 (30-341)	1/4" x 1/4"	1.47"	0.82"	0.68"	0.06
30342 (30-342)	1/4" x 3/8"	1.40"	0.77"	0.68"	0.09
30343 (30-343)	3/8" x 1/4"	1.61"	0.97"	0.68"	0.08
30344 (30-344)	3/8" x 3/8"	1.75"	0.95"	0.81"	0.10
30430 (30-430)	3/8" x 1/2"	1.79"	0.97"	0.93"	0.11
30346 (30-346)	1/2" x 1/2"	1.88"	1.09"	0.93"	0.12
30345 (30-345)	1/2" x 3/4"	2.36"	1.02"	1.18"	0.18
30349 (30-349)	3/4" x 3/4"	2.36"	1.55"	1.18"	0.22

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
