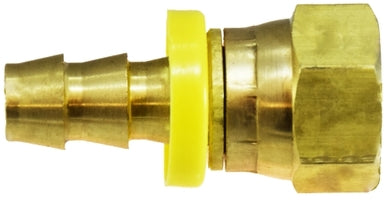

30359 (30-359) Midland Push-On Fitting - Female Gasket Seal Swivel - 1/4" Hose ID x 1/8" Female NPSM - Brass

30359 by Midland | Push-On Fitting | Female Gasket Seal Swivel | 1/4" Hose ID x 1/8" Female NPSM | Brass

Save $7.09 Save $7.09
$17.72
$17.72 - $17.72
$17.72
$10.63
$10.63 - $10.63
$10.63

Midland Industries
Brass Fitting - Push On Barb Fitting - Female Gasket Seal Swivel

Not recommend for water due to fiber gasket - for air service only.

Inventory @ Manufacturers Warehouse: 35 Units
Specifications for Variant SKU: 30359 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-On Hose Barb, 1/8in Female NPSM
Material(s): Brass
Seal Material(s): Fiber

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
129PO9
Part Number Hose ID x Female NPTF Gasket Swivel A B Hex Approx. Weight
(Lbs.)
30359
(30-359) 		1/4" x 1/8" 1.39" 0.77" 0.50" 0.03
30358
(30-358) 		1/4" x 1/4" 1.47" 0.82" 0.68" 0.06
30360
(30-360) 		3/8" x 1/4" 1.61" 1.00" 0.68" 0.06
30361
(30-361) 		3/8" x 3/8" 1.77" 0.97" 0.81" 0.08
30362
(30-362) 		3/8" x 1/2" 1.80" 0.92" 0.93" 0.09
30363
(30-363) 		1/2" x 1/2" 1.09" 1.02" 0.93" 0.11
30366
(30-366) 		3/4" x 3/4" 2.36" 1.55" 1.18" 0.32
