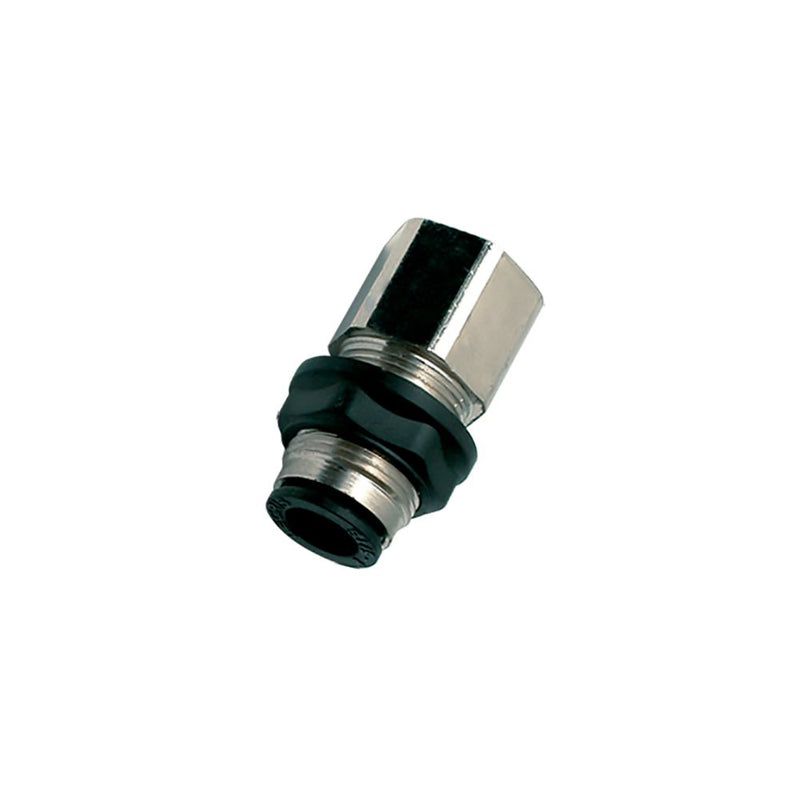

3036 53 11 by Parker | Bulkhead Push-to-Connect Fittings | 1/8" Push-to-Connect x 1/8" Female NPT Thread | 13mm Hex | 1.12" Length | Straight | Nickel-Plated Brass | Pack of 10

Save $16.51

$121.71

$121.71 - $121.71

$121.71

$105.20

$105.20 - $105.20

$105.20

by Parker Hannifin
Push-to-Connect Fittings:3036 - female bulkhead connector tube to NPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3036 53 11 Parker \| 10 \|
Brand:	LF 3000®
Series:	3036 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone-Free
Markets:	Pneumatic Industrial Automation Robotic Printing Packaging Textile
Applications:	Air Cutting Fluids Inert Gases Vacuum
Pressure Range	Up to 290 psi (20 bar) 3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range	-4° to +175° F (-20° to +80° C) 3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability	28" Hg


Part Number	ØD	C	E	F1	F2	K (max)	L1	L2	ØT (min)	Oz
3036 53 11	1/8"	1/8"	.37"	13 mm	13 mm	.28"	.39"	.73"	.41"	.75 Oz
3036 04 11	5/32"	1/8"	.37"	13 mm	13 mm	.28"	.39"	.73"	.41"	.88 Oz
3036 04 14	5/32"	1/4"	.55"	13 mm	16 mm	.32"	.39"	.95"	.41"	.99 Oz
3036 56 11	1/4"	1/8"	.37"	18 mm	17 mm	.32"	.45"	.96"	.61"	1.23 Oz
3036 56 14	1/4"	1/4"	.55"	18 mm	17 mm	.32"	.45"	.91"	.61"	1.41 Oz
3036 60 14	3/8"	1/4"	.55"	22 mm	22 mm	.33"	.55"	.87"	.73"	2.57 Oz
3036 60 18	3/8"	3/8"	.55"	22 mm	22 mm	.33"	.55"	1.02"	.73"	2.65 Oz
