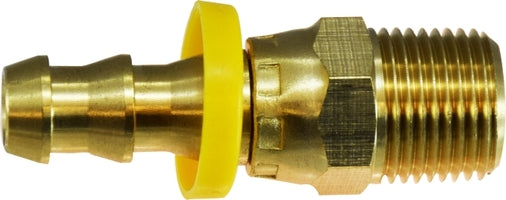

30390 (30390) Midland Push-On Fitting - Male Swivel - 3/4" Hose ID x 3/4" Male NPTF - Brass

30390 by Midland | Push-On Fitting | Swivel | 3/4" Hose ID x 3/4" Male NPTF | Brass

Save $4.73 Save $4.73
$11.82
$11.82 - $11.82
$11.82
$7.09
$7.09 - $7.09
$7.09

Midland Industries
Brass Fitting - Push On Barb Fitting - Male Swivel Adapter

Inventory @ Manufacturers Warehouse: 2641 Units
Specifications for Variant SKU: 30390 Midland
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Male NPTF
Material(s): Brass
Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29PO9 129PO2 921 HMS 285 31382
Part Number Hose ID x Male NPTF A B Hex Approx. Weight
(Lbs.)
30422
(30-422) 		1/4" x 1/8" 2.07" 0.87" 0.56" 0.06
30385
(30-385) 		1/4" x 1/4" 2.02" 0.87" 0.56" 0.06
30423
(30-423) 		3/8" x 1/8" 2.12" 0.97" 0.56" 0.07
30386
(30-386) 		3/8" x 1/4" 2.12" 0.97" 0.56" 0.08
30387
(30-387) 		3/8" x 3/8" 2.12" 0.97" 0.68" 0.08
30388
(30-388) 		1/2" x 3/8" 2.12" 0.97" 0.68" 0.10
30389
(30-389) 		1/2" x 1/2" 2.33" 0.97" 0.87" 0.14
30424
(30-424) 		5/8" x 1/2" 2.80" 1.45" 0.88" 0.18
30390
(30-390) 		3/4" x 3/4" 2.80" 1.45" 1.06" 0.24
