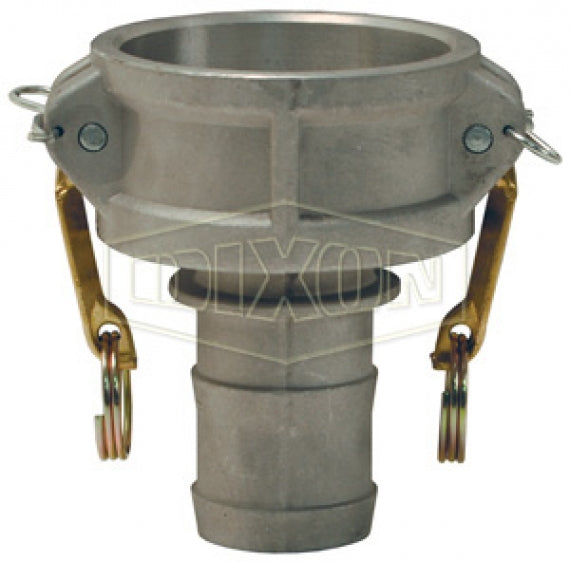

3040-C-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type C | 3" Coupler x 4" Hose Shank | Aluminum

3040-C-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type C | 3" Coupler x 4" Hose Shank | Aluminum

Save $77.39 Save $77.39
$193.48
$193.48 - $193.48
$193.48
$116.09
$116.09 - $116.09
$116.09

Dixon Valve
Cam & Groove Reducer (Jump Size) Coupler | Type C | Coupler x Hose Shank

Designed for use with liquids.
Specifications for Variant SKU: 3040-C-AL Dixon
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 3in Female Cam & Groove, 4in Hose Barb
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Precision machined to rigid tolerances.
  • Stainless pins will not rust or bind, providing great strength and safety.
  • Recess holds gasket firmly in place - ensures proper placement.
  • Long shank design allows proper banding, thus eliminating the major cause of hose damage.
Construction:
  • Nitrile Rubber gasket.
  • Durable stainless steel cam arm pins.
  • Supplied with safety clips.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size
Coupler x Hose Shank		 Maximum Operating Pressure
- 1510-C-SS 1-1/2" x 1" 250 PSI
2015-C-AL* 2015-C-SS* 2" x 1-1/2" 250 PSI
3020-C-AL 3020-C-SS 3" x 2" 125 PSI
- 3025-C-SS 3" x 2-1/2" 125 PSI
3040-C-AL - 3" x 4" 100 PSI
4030-C-AL 4030-C-SS* 4" x 3" 100 PSI
5040-C-AL* - 5" x 4" 75 PSI

* Parts are produced as a welded fabrication
