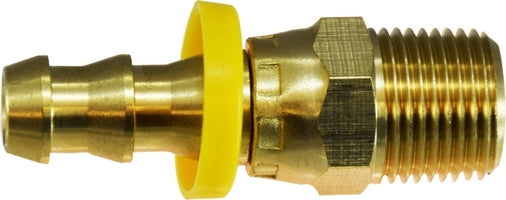

30424 by Midland | Push-On Fitting | Swivel | 5/8" Hose ID x 1/2" Male NPTF | Brass

Save $0.30 Save $0.30
Original price $7.86
Original price $7.86 - Original price $7.86
Original price $7.86
Current price $7.56
$7.56 - $7.56
Current price $7.56

Midland Industries
Brass Fitting - Push On Barb Fitting - Male Swivel Adapter

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 27 Units

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 30424 Midland
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 1/2in Male NPTF
Material(s): Brass

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI
Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29PO9 129PO2 921 HMS 285 31382
Part Number Hose ID x Male NPTF A B Hex Approx. Weight
(Lbs.)
30422
(30-422)
1/4" x 1/8" 2.07" 0.87" 0.56" 0.06
30385
(30-385)
1/4" x 1/4" 2.02" 0.87" 0.56" 0.06
30386
(30-386)
3/8" x 1/4" 2.12" 0.97" 0.56" 0.08
30387
(30-387)
3/8" x 3/8" 2.12" 0.97" 0.68" 0.08
30388
(30-388)
1/2" x 3/8" 2.12" 0.97" 0.68" 0.10
30389
(30-389)
1/2" x 1/2" 2.33" 0.97" 0.87" 0.14
30424
(30-424)
5/8" x 1/2" 2.80" 1.45" 0.88" 0.18
30390
(30-390)
3/4" x 3/4" 2.80" 1.45" 1.06" 0.24
