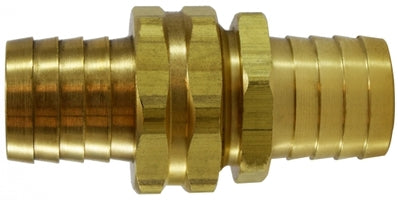

30541 (30-541) by Midland | Garden Hose Fitting | NPSM Short Shank Set | 5/8" Hose Barb | Straight | Brass

Save $4.15

$10.37

$10.37 - $10.37

$10.37

$6.22

$6.22 - $6.22

$6.22

Midland Industries
Brass Fitting - Garden Hose Fitting - NPSM Short Shank Set

Specifications for Variant SKU: 30541 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/8in Hose Barb, 5/8in Hose Barb, Some Ends Match
Material(s):	Brass

Temperature and Working Pressure Ranges:
From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.) Note: All female connector ends should have a rubber washer inserted prior to usage. Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.

Part Number	Hose ID
30540 (30-540)	1/2"
30541 (30-541)	5/8"
30542 (30-542)	3/4"
30543 (30-543)	1"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
