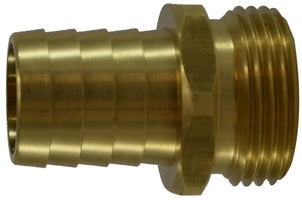

30552 (30-552) by Midland | Garden Hose Fitting | Male NPSM Short Shank | 3/4" Hose Barb x 3/4" Male NPSM | Straight | Brass

Save $0.50

$4.49

$4.49 - $4.49

$4.49

$3.99

$3.99 - $3.99

$3.99

Midland Industries
Brass Fitting - Garden Hose Fitting - NPSM Male Short Shank

Inventory @ Manufacturers Warehouse: 1200 Units

Quantity

Specifications for Variant SKU: 30552 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Male NPSM
Material(s):	Brass

Temperature and Working Pressure Ranges:
From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.) Note: All female connector ends should have a rubber washer inserted prior to usage. Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.


Part Number	Hose ID	NPSM Thread	A	B	Hex
30550 (30-550)	1/2"	3/4"	1.56"	0.88"	1.06
30551 (30-551)	5/8"	3/4"	1.56"	0.88"	1.06
30552 (30-552)	3/4"	3/4"	1.56"	0.88"	1.06
30553 (30-553)	1"	1"	1.77"	0.98"	1.30
