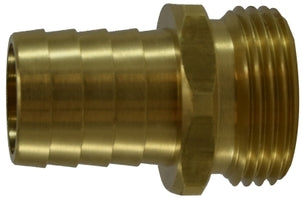

30553 (30-553) by Midland | Garden Hose Fitting | Male NPSM Short Shank | 1" Hose Barb x 1" Male NPSM | Straight | Brass

Save $0.73

$6.58

$6.58 - $6.58

$6.58

$5.85

$5.85 - $5.85

$5.85

Midland Industries
Brass Fitting - Garden Hose Fitting - NPSM Male Short Shank

Quantity

Specifications for Variant SKU: 30553 Midland
Shape (Orientation):	Straight
Ends Configuration:	1in Hose Barb, 1in Male NPSM
Material(s):	Brass

Temperature and Working Pressure Ranges:
From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.) Note: All female connector ends should have a rubber washer inserted prior to usage. Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.


Part Number	Hose ID	NPSM Thread	A	B	Hex
30550 (30-550)	1/2"	3/4"	1.56"	0.88"	1.06
30551 (30-551)	5/8"	3/4"	1.56"	0.88"	1.06
30552 (30-552)	3/4"	3/4"	1.56"	0.88"	1.06
30553 (30-553)	1"	1"	1.77"	0.98"	1.30

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
