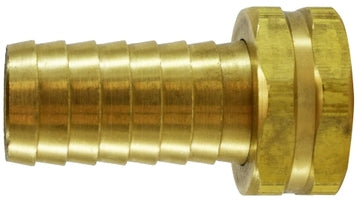

30565 (30-565) by Midland | Garden Hose Fitting | Female NPSM Long Shank | 1/2" Hose Barb x 1/2" Female NPSM | Straight | Brass

Save $2.26

$5.65

$5.65 - $5.65

$5.65

$3.39

$3.39 - $3.39

$3.39

Midland Industries
Brass Fitting - Garden Hose Fitting - Female NPSM Long Shank

Inventory @ Manufacturers Warehouse: 987 Units

Specifications for Variant SKU: 30565 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 1/2in Female NPSM
Material(s):	Brass

Temperature and Working Pressure Ranges:
From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.) Note: All female connector ends should have a rubber washer inserted prior to usage. Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.


Part Number	Hose ID	NPSM Thread	A	B	Hex
30565 (30-565)	1/2"	1/2"	2.09"	1.50"	0.94
30566 (30-566)	5/8"	3/4"	2.09"	1.50"	1.18
30567 (30-567)	3/4"	3/4"	2.09"	1.50"	1.18
30568 (30-568)	1"	1"	2.12"	1.53"	1.50

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
