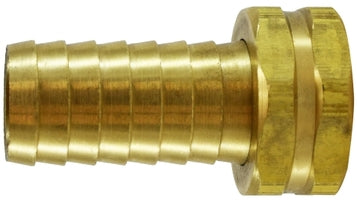

30567 (30-567) by Midland | Garden Hose Fitting | Female NPSM Long Shank | 3/4" Hose Barb x 3/4" Female NPSM | Straight | Brass

Save $3.43

$8.57

$8.57 - $8.57

$8.57

$5.14

$5.14 - $5.14

$5.14

Midland Industries
Brass Fitting - Garden Hose Fitting - Female NPSM Long Shank

Inventory @ Manufacturers Warehouse: 984 Units

Specifications for Variant SKU: 30567 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Female NPSM
Material(s):	Brass

Temperature and Working Pressure Ranges:
From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.) Note: All female connector ends should have a rubber washer inserted prior to usage. Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.


Part Number	Hose ID	NPSM Thread	A	B	Hex
30565 (30-565)	1/2"	1/2"	2.09"	1.50"	0.94
30566 (30-566)	5/8"	3/4"	2.09"	1.50"	1.18
30567 (30-567)	3/4"	3/4"	2.09"	1.50"	1.18
30568 (30-568)	1"	1"	2.12"	1.53"	1.50
