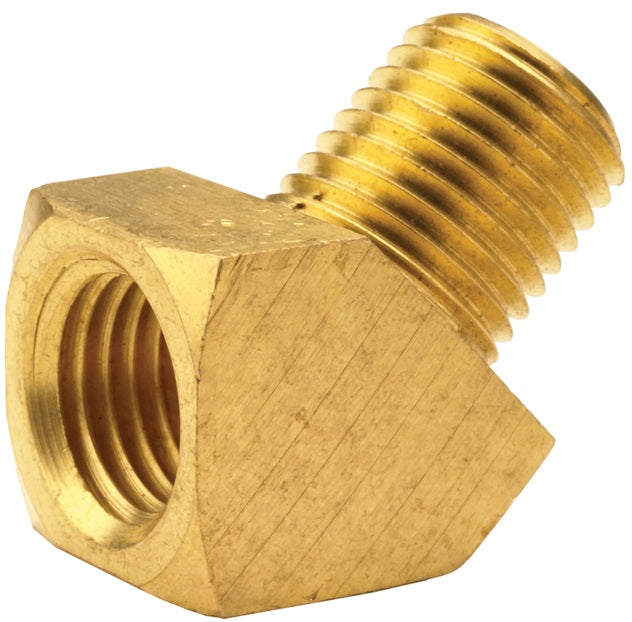

3061212C by Dixon Valve | 45° Elbow | 3/4" Female NPTF x 3/4" Male NPTF | Extruded Brass

Name: 3061212C by Dixon Valve | 45° Elbow | 3/4" Female NPTF x 3/4" Male NPTF | Extruded Brass
Brand: Dixon
SKU: 3061212C Dixon
Price: 10.31 USD
Availability: InStock

Save $6.87

$17.18

$17.18 - $17.18

$17.18

$10.31

$10.31 - $10.31

$10.31

Dixon Valve
Pipe Fitting | 45° Elbow | Female NPTF x Male NPTF

Specifications for Variant SKU: 3061212C Dixon
Series:	306 Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Male NPTF, 3/4in Female NPTF
Material(s):	Brass

Specifications:
Ref SAE 130339 Extruded Dryseal

Forged Brass Part Number	Previous Part Number	316 Stainless Steel Part Number (NPT THREADS)	Female NPTF	Male NPTF
3060202C	306-0202	3060202SS	1/8"	1/8"
3060404C	306-0404	3060404SS	1/4"	1/4"
3060606C	306-0606	3060606SS	3/8"	3/8"
3060808C	306-0808	3060808SS	1/2"	1/2"
3061212C	306-1212	3061212SS	3/4"	3/4"
-	-	3061616SS	1"	1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
