3080-0600-100 by Jason Industrial | 3080 Series | Water Suction Hose | NBR/PVC | 6" ID | 6.81" OD | 23 PSI | Green | 100ft

$0.00 - $0.00

$0.00

$2,092.64

$2,092.64 - $2,092.64

$2,092.64

Jason Industrial
3080 Series | Water Suction Hose | Green

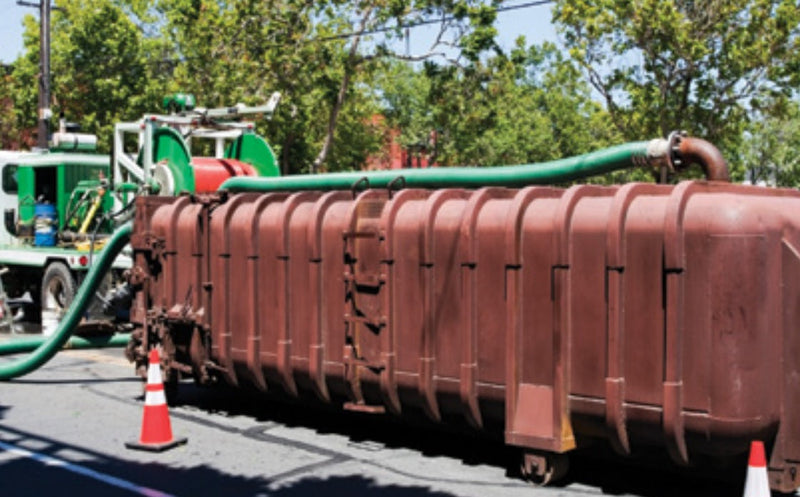

Used for septic, waste water and liquid manure handling; agricultural liquid fertilizers and standard duty water suction, as well as suction and transfer for rental, construction and trash pumps.

Package Quantity: 100 FT

Specifications for Variant SKU: 3080-0600-100 Jason \| 100 \|
Series:	3080 Series
Hose Color(s):	Green
Internal Diameter:	6in
Outer Diameter:	6.81in
Tubing Construction:	NBR/PVC Blend
Cover Construction:	NBR/PVC Blend
Special Properties:	Outer Helix Protection

Water Hose

Jason Industrial | 3080 Series
Water Suction Hose

1

What is this product used for?

Septic
Waste Water
Liquid Manure Handling
Agricultural Liquid Fertilizers
Standard Duty Water Suction
Suction & Transfer for Rental, Construction and Trash Pumps

2

What are the key specifications?

Tube

NBR/PVC

Cover

NBR/PVC

Reinforcement

Polyethylene Clockwise Helix

Temperature Range

-40°F (-40°C) to +140°F (+60°C)

Colors

Green

Branding

None

Specifications

N/A

Design Factor

3:1

3

What are the main product features?

-40°F cold weather resistance.
Sub-zero flexibility.
Clockwise polyethylene helix.
Vacuum up to 29" of Hg.

4

Which sizes or configurations are available?

Part Number 100ft	ID		OD		Reinfor- cement	Max. Working Pressure @ 68° F		Vacuum @ 68°F	Weight (lbs/ft)	Minimum Bend Radius
Part Number 100ft	in	mm	in	mm	Reinfor- cement	PSI	BAR	in of Hg	Weight (lbs/ft)	in	mm
3080-0150-100	1-1/2"	38.10mm	1.85"	46.99mm	PE Helix	50 PSI	3.45 BAR	29.0	0.41lbs	3.80"	96.50mm
3080-0200-100	2"	50.80mm	2.43"	61.72mm	PE Helix	50 PSI	3.45 BAR	29.0	0.67lbs	5.50"	139.70mm
3080-0300-100	3"	76.20mm	3.52"	89.41mm	PE Helix	45 PSI	3.10 BAR	29.0	1.10lbs	7.50"	190.50mm
3080-0400-100	4"	101.60mm	4.60"	116.84mm	PE Helix	38 PSI	2.62 BAR	29.0	1.84lbs	11.50"	292.10mm
3080-0600-100	6"	152.40mm	6.81"	172.97mm	PE Helix	23 PSI	1.59 BAR	28.0	3.23lbs	20.00"	508.00mm

WARNING: Working pressure (W.P.) is temperature dependent.

i

No by the foot sales. This is a Packaged Length product.
