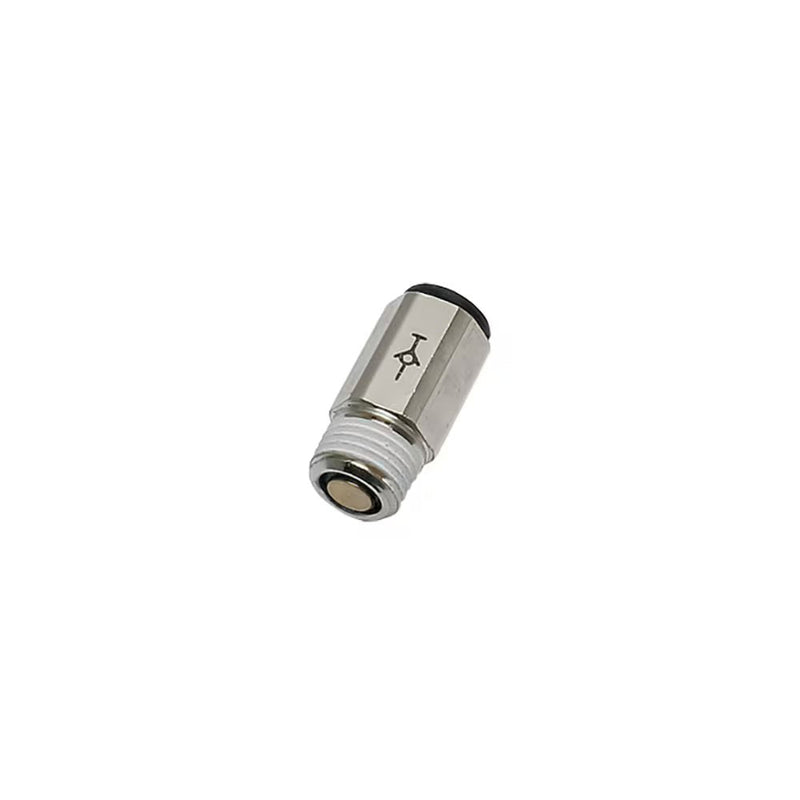

3091 04 11 by Parker | Self-Sealing Fitting | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 12 mm Hex | .81" Length | Straight | Nickel-Plated Brass | Pack of 10

Save $122.86

$307.15

$307.15 - $307.15

$307.15

$184.29

$184.29 - $184.29

$184.29

by Parker Hannifin
Self-sealing and Oscillating Fittings:3091 - self-sealing male fitting NPT or BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3091 04 11 Parker \| 10 \|
Series:	3091 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Polymer, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Self-Sealing Fittings Prevents fluid flow when there is no tube connected Circuits may remain pressurized when being checked and maintained When connected, the compressed air flow is restored in both directions Oscillating Fittings Rotation matched to cylinder rod stroke Prevents tube wear due to excessive flexing Optimum reliability and durability Simplifies circuit assembly
Markets:	Automotive Textile Packaging Semi-Conductor
Applications:	Robotics Automotive Process Pneumatics Semi-Conductors Textile Packaging
Compatible Fluids	Compressed air Other fluids: please consult us
Working Pressure	290 psi (20 bar) 145 psi (10 bar) self sealing fittings
Vacuum Capability	28" Hg
Working Pressure	-4° to 176° F (-20° to 80° C


Part Number	ØD	NPT (C)	E	F	H	L	ØT	Oz
3091 04 11	5/32"	1/8"	.30"	12 mm	.51"	.37"	.20"	.63"
3091 56 11	1/4"	1/8"	.30"	13 mm	.60"	.37"	.30"	.63"
3091 56 14	1/4"	1/4"	.43"	14 mm	.41"	.55"	.35"	1.00"
3091 60 14	3/8"	1/4"	.43"	19 mm	.83"	.55"	.35"	1.00"
3091 60 18	3/8"	3/8"	.45"	19 mm	.73"	.55"	.40"	1.83"
