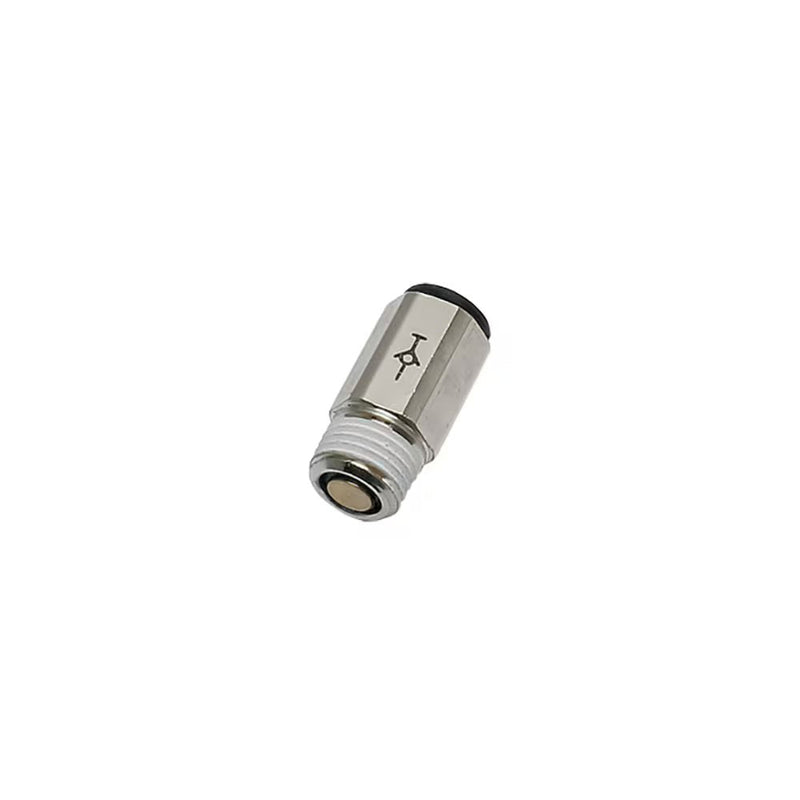

3091 60 14 by Parker | Self-Sealing Fitting | 3/8" Push-to-Connect x 1/4" Male NPT Thread | 19 mm Hex | 1.26" Length | Straight | Nickel-Plated Brass

3091 60 14 by Parker | Self-Sealing Fitting | 3/8" Push-to-Connect x 1/4" Male NPT Thread | 19 mm Hex | 1.26" Length | Straight | Nickel-Plated Brass | Pack of 10

Save $240.35 Save $240.35
$600.88
$600.88 - $600.88
$600.88
$360.53
$360.53 - $360.53
$360.53

by Parker Hannifin
Self-sealing and Oscillating Fittings:3091 - self-sealing male fitting NPT or BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: 3091 60 14 Parker | 10 |
Series: 3091 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Polymer, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
      Self-Sealing Fittings
  • Prevents fluid flow when there is no tube connected
  • Circuits may remain pressurized when being checked and maintained
  • When connected, the compressed air flow is restored in both directions
      • Oscillating Fittings
  • Rotation matched to cylinder rod stroke
  • Prevents tube wear due to excessive flexing
  • Optimum reliability and durability
  • Simplifies circuit assembly
Markets:
  • Automotive
  • Textile
  • Packaging
  • Semi-Conductor
Applications:
  • Robotics
  • Automotive Process
  • Pneumatics
  • Semi-Conductors
  • Textile
  • Packaging
Compatible Fluids
  • Compressed air
    Other fluids: please consult us
Working Pressure
  • 290 psi (20 bar)
    145 psi (10 bar) self sealing fittings
Vacuum Capability
  • 28" Hg
Working Pressure
  • -4° to 176° F (-20° to 80° C
Part Number ØD NPT (C) E F H L ØT Oz
3091 04 11 5/32" 1/8" .30" 12 mm .51" .37" .20" .63"
3091 56 11 1/4" 1/8" .30" 13 mm .60" .37" .30" .63"
3091 56 14 1/4" 1/4" .43" 14 mm .41" .55" .35" 1.00"
3091 60 14 3/8" 1/4" .43" 19 mm .83" .55" .35" 1.00"
3091 60 18 3/8" 3/8" .45" 19 mm .73" .55" .40" 1.83"
