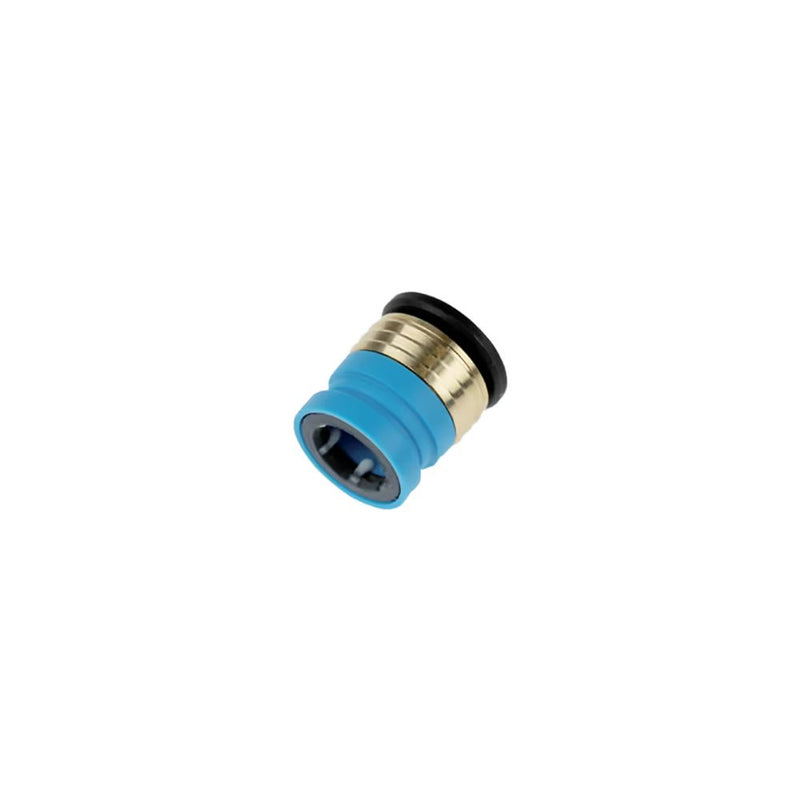

3100 14 00 by Parker | Legris Cartridge | 14 mm Push-to-Connect | 24.5 mm Length | Polymer

3100 14 00 by Parker | Legris Cartridge | 14 mm Push-to-Connect | 24.5 mm Length | Polymer

Save $5.14 Save $5.14
$12.85
$12.85 - $12.85
$12.85
$7.71
$7.71 - $7.71
$7.71

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3100 Carstick® Cartridge
Specifications for Variant SKU: 3100 14 00 Parker
Brand: Carstick®
Series: 3100 Series
Shape (Orientation): No Orientation
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD G G1 H L Kg
3100 04 00 4 mm 8 mm 11 mm 10 mm 554 mm .007 Kg
3100 06 00 6 mm 10 mm 14.5 mm 11.5 mm 629 mm .002 Kg
3100 08 00 8 mm 13 mm 15 mm 15 mm 794 mm .002 Kg
3100 10 00 10 mm 15.5 mm 19.5 mm 17 mm 930 mm .005 Kg
3100 12 00 12 mm 19.5 mm 21 mm 19.5 mm 1038 mm .010 Kg
3100 14 00 14 mm 21 mm 24.5 mm 22.5 mm 1110 mm .013 Kg

50 cartridges per Carstick®.

Cavity dimensions are available upon request
