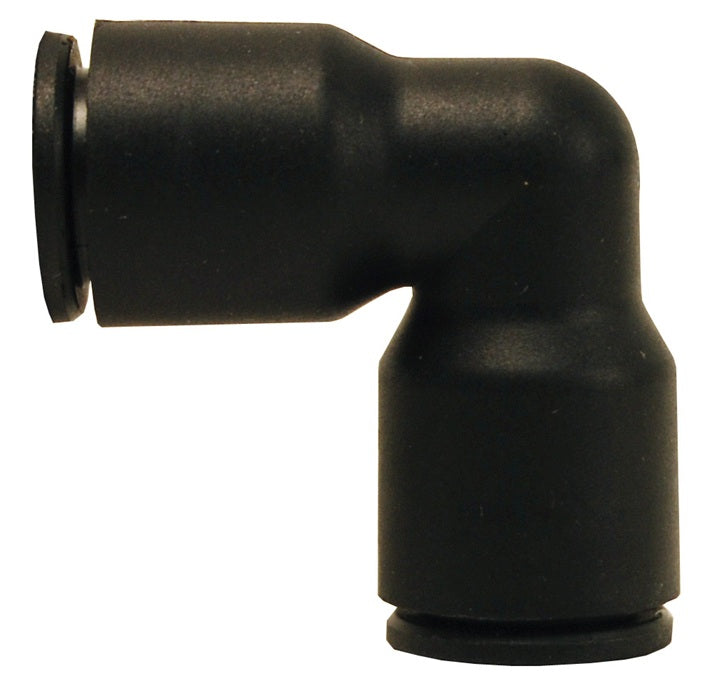

31020600 by Dixon Valve | Legris Metric Push-In Fitting | Union | 90° Elbow | 6mm Tube OD x 6mm Tube OD | Nylon

Save $3.58

$8.95

$8.95 - $8.95

$8.95

$5.37

$5.37 - $5.37

$5.37

Dixon Valve & Coupling
Metric Push-In Fitting | Union | 90° Elbow | Tube End x Tube End

Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.

Specifications for Variant SKU: 31020600 Dixon
Shape (Orientation):	90 Degree
Ends Configuration:	6mm Push-to-Connect, 6mm Push-to-Connect, Some Ends Match
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Positive seal: sealing and holding is accomplished instantaneously. Reusable: connect and disconnect numerous times. Full flow: fitting seals on outside diameter of tubing.
Construction:
Black glass-filled nylon body Polypropylene release button Silicone free Nitrile Rubber D-seal
Installation:
Quick connect and disconnect, no tools required. To connect, simply push tubing in. To disconnect, press the release ring towards the fitting and pull tubing out.
Specifications:
Temperature Range: -4°F to 175°F (-20°C to 79°C) Vacuum capability: vacuum of 28" Hg (99% vacuum) Pressure Rating: 290 PSI at 70°F (21°C)

Part Number	Tube O.D.	Tube O.D.
31020600	6mm	6mm
31021000	10mm	10mm
