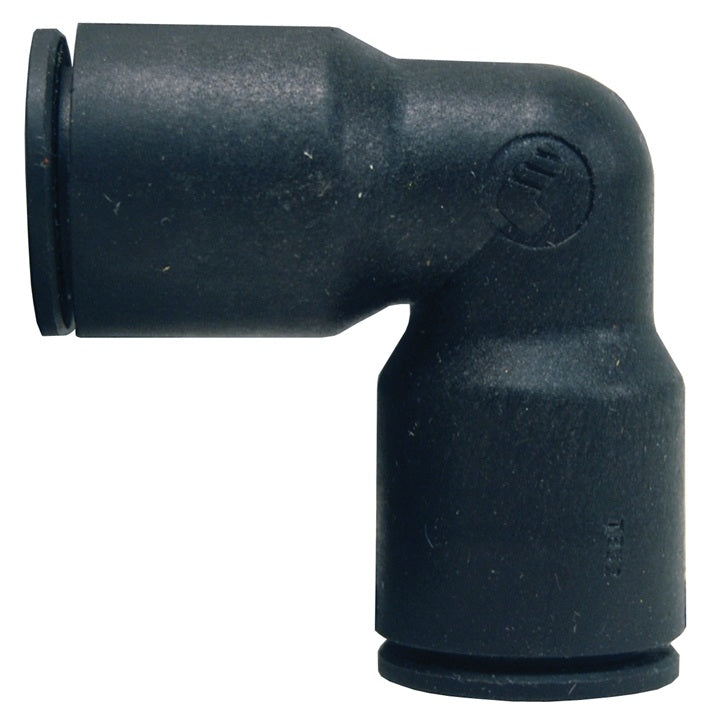

31025600 by Dixon Valve | Legris Push-In Fitting | Union | 90° Elbow | 1/4" Tube OD x 1/4" Tube OD | Nylon

Save $3.19

$7.98

$7.98 - $7.98

$7.98

$4.79

$4.79 - $4.79

$4.79

Dixon Valve & Coupling
Legris Push-In Fitting | Union | 90° Elbow | Tube End x Tube End

Specifications for Variant SKU: 31025600 Dixon
Brand:	Legris
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Push-To-Connect, 1/4in Push-To-Connect, Some Ends Match
Material(s):	Nylon, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Use:
Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube. Vacuum capability: vacuum of 28" Hg (99% vacuum).
Features:
Positive seal: sealing and holding is accomplished instantaneously. Reusable: connect and disconnect numerous times. Full flow: fitting seals on outside diameter of tubing.
Construction:
Black body is glass-filled nylon. Nitrile Rubber D seal. Polypropylene release button. Silicone free.
Installation:
Quick connect and disconnect, no tools required. To connect, simply push tubing in. To disconnect, press the release ring towards the fitting and pull tubing out.
Safety Notes:
Maximum circuit pressure depends equally on the type and diameter of the tube used. Pressure rating given at ambient temperature 70°F/21°C.

Part Number	Tube O.D. Ends
31025300	1/8"
31020400	5/32"
31025600	1/4"
31020800	5/16"
31026000	3/8"
31026200	1/2"
