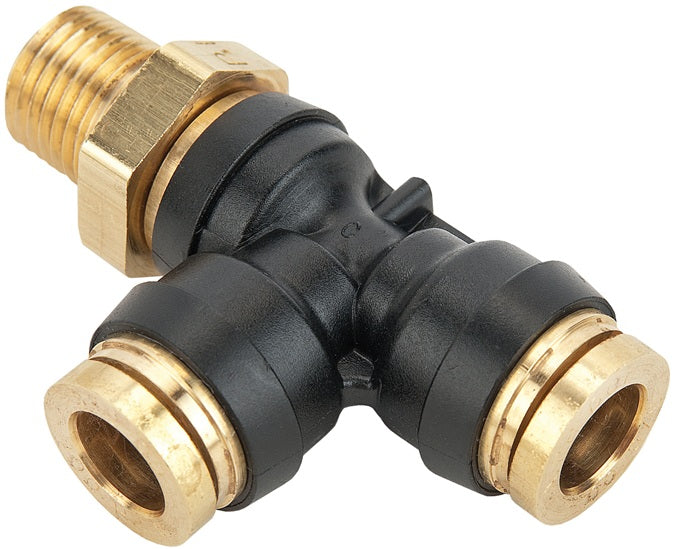

31035611DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Male Run Tee | 1/8" Male NPT x 1/4" Tube OD x 1/4" Tube OD | Composite/Brass

31035611DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Male Run Tee | 1/8" Male NPT x 1/4" Tube OD x 1/4" Tube OD | Composite/Brass

Save $6.13 Save $6.13
$15.33
$15.33 - $15.33
$15.33
$9.20
$9.20 - $9.20
$9.20

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Male Run Tee | Male NPT x Tube End x Tube End

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.
Specifications for Variant SKU: 31035611DOT Dixon
Shape (Orientation): Tee
Ends Configuration: 1/4in Push-to-Connect, 1/8in Male NPT
Material(s): Plastic, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body (Unless noted below)
  • Brass collet
  • Stainless steel tube support
  • Nitrile Rubber seal
  • Brass threads
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • 3/16" diameter meets D.O.T. FMVSS571.106, SAE J2494, and SAE J2494-3.
  • 1/4", 3/8", and 1/2" diameters meet D.O.T. FMVSS571.106, SAE J1131, and SAE J2494-3.
  • Fitting can be oriented 360°, allowing proper positioning of the fitting.
  • 5/32" and 3/16" have black button.
  • 3/8" and below fittings can be rotated with your hands. The 1/2" and above require a wrench for rotating.
Part Number Tube O.D. Male NPT
31035511DOT* 3/16" 1/8"
31035611DOT 1/4" 1/8"
31035614DOT 1/4" 1/4"
31035618DOT 1/4" 3/8"
31036014DOT 3/8" 1/4"
31036018DOT 3/8" 3/8"
31036022DOT 3/8" 1/2"
31036214DOT 1/2" 1/4"
31036218DOT 1/2" 3/8"
31036222DOT 1/2" 1/2"

* Brass body
