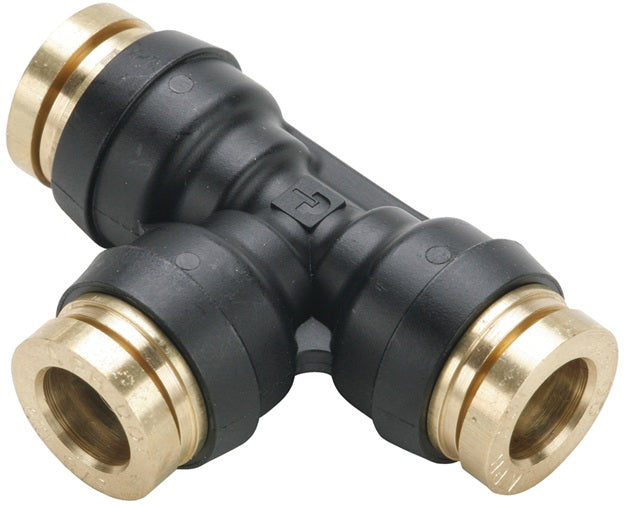

31045500DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Union Tee | 3/16" Tube OD | Brass Body/Composite

31045500DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Union Tee | 3/16" Tube OD | Brass Body/Composite

Save $3.74 Save $3.74
$40.06
$40.06 - $40.06
$40.06
$36.32
$36.32 - $36.32
$36.32

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Union Tee | Tube End x Tube End x Tube End

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.
Specifications for Variant SKU: 31045500DOT Dixon
Shape (Orientation): Tee
Ends Configuration: 3/16in Push-to-Connect, 3/16in Push-to-Connect, Some Ends Match
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body (Unless noted below)
  • Brass collet
  • Stainless steel tube support
  • Nitrile Rubber seal
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • 5/32" and 3/16" diameter meets D.O.T. FMVSS571.106, SAE J2494, and SAE J2494-3.
  • 1/4", 3/8", and 1/2" diameters meet D.O.T. FMVSS571.106, SAE J1131, and SAE J2494-3.
  • 5/32" and 3/16" have a black button.
  • 3/8" and below fittings can be rotated with your hands. The 1/2" and above require a wrench for rotating.
Part Number Tube O.D.
31040400DOT* 5/32"
31045500DOT* 3/16"
31045600DOT 1/4"
31046000DOT 3/8"
31046200DOT 1/2"

* Brass body
