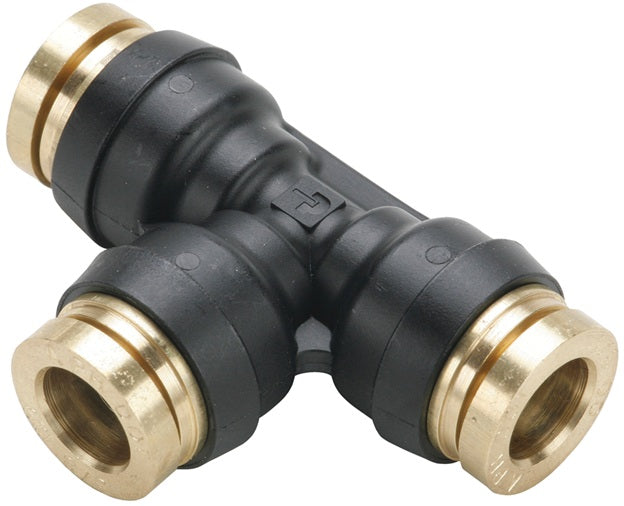

31046200DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Union Tee | 1/2" Tube OD | Composite/Brass

Name: 31046200DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Union Tee | 1/2" Tube OD | Composite/Brass
Brand: Dixon
SKU: 31046200DOT Dixon
Price: 18.15 USD
Availability: InStock

Save $1.86

$20.01

$20.01 - $20.01

$20.01

$18.15

$18.15 - $18.15

$18.15

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Union Tee | Tube End x Tube End x Tube End

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.

Quantity

Specifications for Variant SKU: 31046200DOT Dixon
Shape (Orientation):	Tee
Ends Configuration:	1/2in Push-to-Connect, 1/2in Push-to-Connect, Some Ends Match
Material(s):	Plastic, Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Suitable fluids: compressed air only. Full 360° rotation, but lock into place preventing accidental movement of fitting. 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
Composite body (Unless noted below) Brass collet Stainless steel tube support Nitrile Rubber seal
Specifications:
Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C) Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
5/32" and 3/16" diameter meets D.O.T. FMVSS571.106, SAE J2494, and SAE J2494-3. 1/4", 3/8", and 1/2" diameters meet D.O.T. FMVSS571.106, SAE J1131, and SAE J2494-3. 5/32" and 3/16" have a black button. 3/8" and below fittings can be rotated with your hands. The 1/2" and above require a wrench for rotating.

Part Number	Tube O.D.
31040400DOT*	5/32"
31045500DOT*	3/16"
31045600DOT	1/4"
31046000DOT	3/8"
31046200DOT	1/2"

* Brass body
