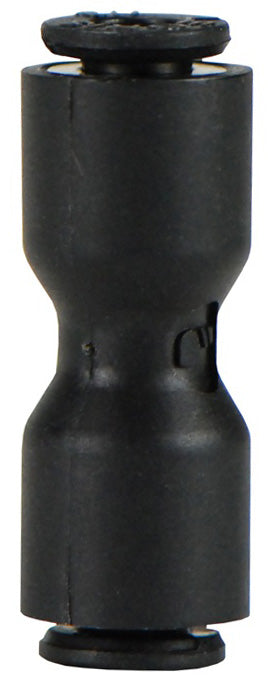

31060406 by Dixon Valve | Metric Push-In Fitting | Union | 4mm Tube OD x 6mm Tube OD | Nylon

31060406 by Dixon Valve | Metric Push-In Fitting | Union | 4mm Tube OD x 6mm Tube OD | Nylon

Save $0.88 Save $0.88
$9.35
$9.35 - $9.35
$9.35
$8.47
$8.47 - $8.47
$8.47

Dixon Valve & Coupling
Metric Push-In Fitting | Union | Tube End x Tube End

Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
Specifications for Variant SKU: 31060406 Dixon
Shape (Orientation): Straight
Ends Configuration: 4mm Push-to-Connect, 4mm Push-to-Connect, Some Ends Match
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
Construction:
  • Polypropylene release button
  • Nickel-plated brass threads
  • Silicone free
  • Nitrile Rubber D-seal
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Specifications:
  • Temperature Range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
  • Pressure Rating: 290 PSI at 70°F (21°C)
Part Number Tube O.D. Tube O.D.
31060406 4mm 6mm
31060600 6mm 6mm
31061000 10mm 10mm
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
