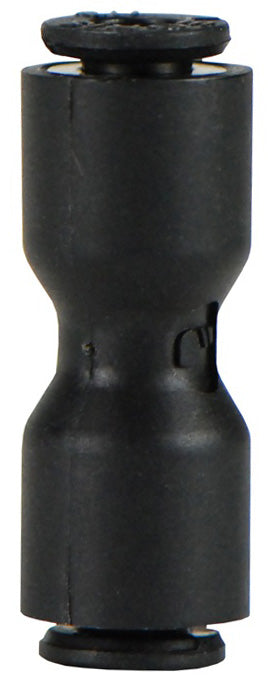

31060600 by Dixon Valve | Metric Push-In Fitting | Union | 6mm Tube OD x 6mm Tube OD | Nylon

31060600 by Dixon Valve | Metric Push-In Fitting | Union | 6mm Tube OD x 6mm Tube OD | Nylon

Save $0.47 Save $0.47
$5.04
$5.04 - $5.04
$5.04
$4.57
$4.57 - $4.57
$4.57

Dixon Valve & Coupling
Metric Push-In Fitting | Union | Tube End x Tube End

Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
Specifications for Variant SKU: 31060600 Dixon
Shape (Orientation): Straight
Ends Configuration: 6mm Push-to-Connect, 6mm Push-to-Connect, Some Ends Match
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
Construction:
  • Polypropylene release button
  • Nickel-plated brass threads
  • Silicone free
  • Nitrile Rubber D-seal
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Specifications:
  • Temperature Range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
  • Pressure Rating: 290 PSI at 70°F (21°C)
Part Number Tube O.D. Tube O.D.
31060406 4mm 6mm
31060600 6mm 6mm
31061000 10mm 10mm
