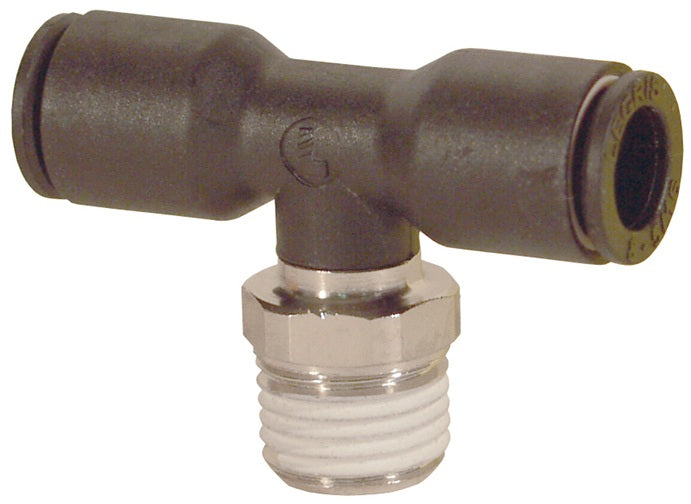

31080810 by Dixon Valve | Legris Metric Push-In Fitting | Male Branch Tee | 8mm Tube OD x 1/8" Male BSPT x 8mm Tube OD | Nylon / Nickel-Plated Brass

31080810 by Dixon Valve | Legris Metric Push-In Fitting | Male Branch Tee | 8mm Tube OD x 1/8" Male BSPT x 8mm Tube OD | Nylon / Nickel-Plated Brass

Save $6.58 Save $6.58
$16.45
$16.45 - $16.45
$16.45
$9.87
$9.87 - $9.87
$9.87

Dixon Valve & Coupling
Legris Metric Push-In Fitting | Male Branch Tee | Tube End x Tube End x Male BSPT

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.
Specifications for Variant SKU: 31080810 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 8mm Push-to-Connect, 1/8in Male BSPT
Material(s): Nickel-Plated Brass, Nylon
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane, and polyethylene tube.
  • Vacuum rating: vacuum of 28" Hg (99% vacuum).
  • NOTE: Body is orientable for positioning purposes.
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Pre-applied thread sealant.
Construction:
  • Polypropylene release button.
  • Nickel-plated brass threads.
  • Silicone free.
Specifications:
  • Pressure rating: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Part Number Tube O.D. Male BSPT (Branch)
31080410 4mm 1/8"
31080413 4mm 1/4"
31080610 6mm 1/8"
31080613 6mm 1/4"
31080810 8mm 1/8"
31080813 8mm 1/4"
