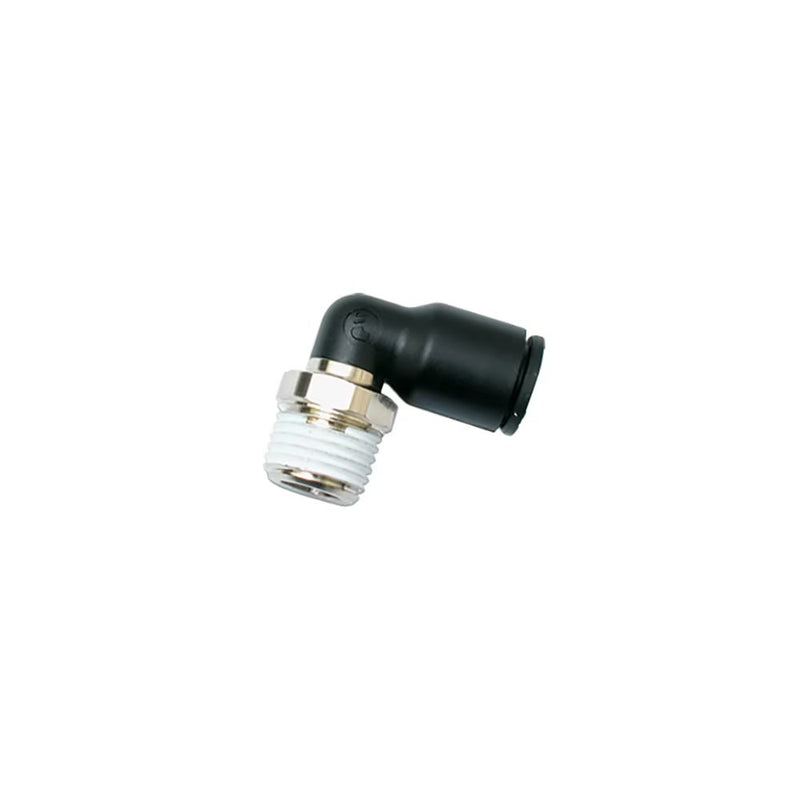

3109 04 17 by Parker | Legris Stud Fitting | 4 mm Push-to-Connect x 3/8" Male Swivel BSPT Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 10

Save $12.63

$84.76

$84.76 - $84.76

$84.76

$72.13

$72.13 - $72.13

$72.13

10 items | $7.21 each

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3109 Stud Elbow, Male BSPT Thread

Specifications for Variant SKU: 3109 04 17 Parker \| 10 \|
Brand:	LF 3000®
Series:	3109 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Coated, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F	G	H	L	Kg
3109 04 10	4 mm	1/8"	10 mm	8.5 mm	13 mm	14 mm	.006 Kg
3109 04 13	4 mm	1/4"	14 mm	8.5 mm	14 mm	14 mm	.015 Kg
3109 04 17	4 mm	3/8"	17 mm	8.5 mm	13.5 mm	14 mm	.019 Kg
3109 06 10	6 mm	1/8"	10 mm	10.5 mm	15.5 mm	16 mm	.006 Kg
3109 06 13	6 mm	1/4"	14 mm	10.5 mm	16 mm	16 mm	.015 Kg
3109 06 17	6 mm	3/8"	17 mm	10.5 mm	16 mm	16 mm	.020 Kg
3109 06 21	6 mm	1/2"	21 mm	10.5 mm	16.5 mm	16 mm	.035 Kg
3109 08 10	8 mm	1/8"	10 mm	13.5 mm	19 mm	23 mm	.007 Kg
3109 08 13	8 mm	1/4"	14 mm	13.5 mm	18 mm	23 mm	.014 Kg
3109 08 17	8 mm	3/8"	17 mm	13.5 mm	18 mm	23 mm	.018 Kg
3109 08 21	8 mm	1/2"	21 mm	13.5 mm	19.5 mm	23 mm	.032 Kg
3109 10 10	10 mm	1/8"	15 mm	16 mm	23 mm	26.5 mm	.012 Kg
3109 10 13	10 mm	1/4"	15 mm	16 mm	22 mm	26.5 mm	.014 Kg
3109 10 17	10 mm	3/8"	17 mm	16 mm	22 mm	26.5 mm	.020 Kg
3109 10 21	10 mm	1/2"	21 mm	16 mm	22 mm	26.5 mm	.034 Kg
3109 12 13	12 mm	3/8"	15 mm	19 mm	25 mm	31 mm	.016 Kg
3109 12 17	12 mm	3/8"	17 mm	19 mm	25 mm	31 mm	.022 Kg
3109 12 21	12 mm	1/2"	21 mm	19 mm	25 mm	31 mm	.037 Kg
3109 14 17	14 mm	3/8"	20 mm	22 mm	30.5 mm	35.5 mm	.031 Kg
3109 14 21	14 mm	1/2"	24 mm	22 mm	28.5 mm	35.5 mm	.042 Kg
3109 16 17	16 mm	3/8"	27 mm	27 mm	53 mm	39 mm	.106 Kg
3109 16 21	16 mm	1/2"	27 mm	27 mm	53 mm	39 mm	.104 Kg

Pre-coated thread

The body swivels for positioning purposes.
