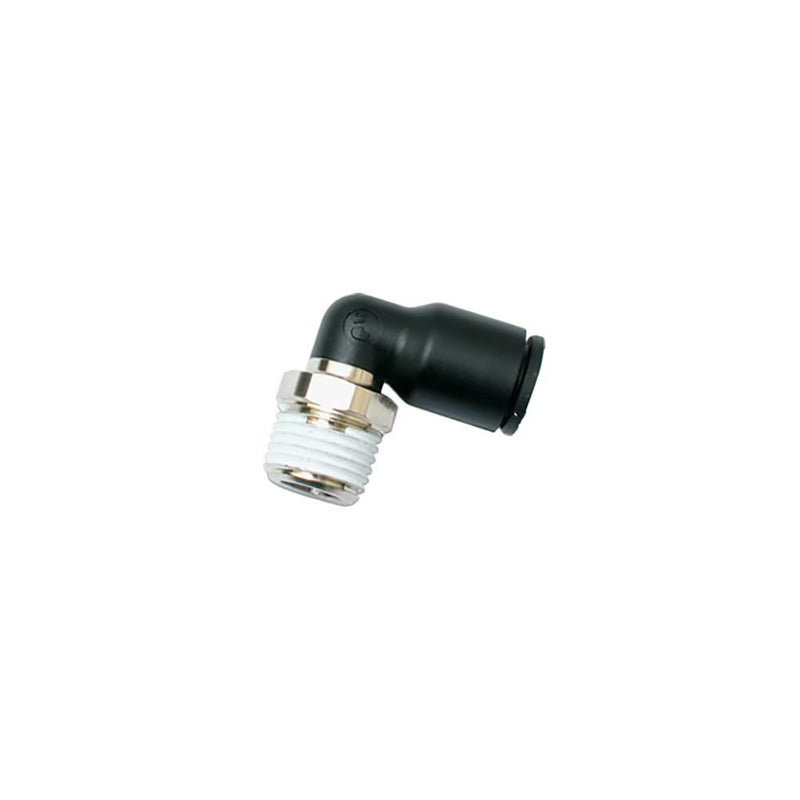

3109 08 13 by Parker | Legris Stud Fitting | 8 mm Push-to-Connect x 1/4" Male Swivel BSPT Thread | 14 mm Hex | 90° Elbow | Polymer | Pack of 10

Save $6.47

$71.15

$71.15 - $71.15

$71.15

$64.68

$64.68 - $64.68

$64.68

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3109 Stud Elbow, Male BSPT Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3109 08 13 Parker \| 10 \|
Brand:	LF 3000®
Series:	3109 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Coated, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F	G	H	L	Kg
3109 04 10	4 mm	1/8"	10 mm	8.5 mm	13 mm	14 mm	.006 Kg
3109 04 13	4 mm	1/4"	14 mm	8.5 mm	14 mm	14 mm	.015 Kg
3109 04 17	4 mm	3/8"	17 mm	8.5 mm	13.5 mm	14 mm	.019 Kg
3109 06 10	6 mm	1/8"	10 mm	10.5 mm	15.5 mm	16 mm	.006 Kg
3109 06 13	6 mm	1/4"	14 mm	10.5 mm	16 mm	16 mm	.015 Kg
3109 06 17	6 mm	3/8"	17 mm	10.5 mm	16 mm	16 mm	.020 Kg
3109 06 21	6 mm	1/2"	21 mm	10.5 mm	16.5 mm	16 mm	.035 Kg
3109 08 10	8 mm	1/8"	10 mm	13.5 mm	19 mm	23 mm	.007 Kg
3109 08 13	8 mm	1/4"	14 mm	13.5 mm	18 mm	23 mm	.014 Kg
3109 08 17	8 mm	3/8"	17 mm	13.5 mm	18 mm	23 mm	.018 Kg
3109 08 21	8 mm	1/2"	21 mm	13.5 mm	19.5 mm	23 mm	.032 Kg
3109 10 10	10 mm	1/8"	15 mm	16 mm	23 mm	26.5 mm	.012 Kg
3109 10 13	10 mm	1/4"	15 mm	16 mm	22 mm	26.5 mm	.014 Kg
3109 10 17	10 mm	3/8"	17 mm	16 mm	22 mm	26.5 mm	.020 Kg
3109 10 21	10 mm	1/2"	21 mm	16 mm	22 mm	26.5 mm	.034 Kg
3109 12 13	12 mm	3/8"	15 mm	19 mm	25 mm	31 mm	.016 Kg
3109 12 17	12 mm	3/8"	17 mm	19 mm	25 mm	31 mm	.022 Kg
3109 12 21	12 mm	1/2"	21 mm	19 mm	25 mm	31 mm	.037 Kg
3109 14 17	14 mm	3/8"	20 mm	22 mm	30.5 mm	35.5 mm	.031 Kg
3109 14 21	14 mm	1/2"	24 mm	22 mm	28.5 mm	35.5 mm	.042 Kg
3109 16 17	16 mm	3/8"	27 mm	27 mm	53 mm	39 mm	.106 Kg
3109 16 21	16 mm	1/2"	27 mm	27 mm	53 mm	39 mm	.104 Kg

Pre-coated thread

The body swivels for positioning purposes.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
